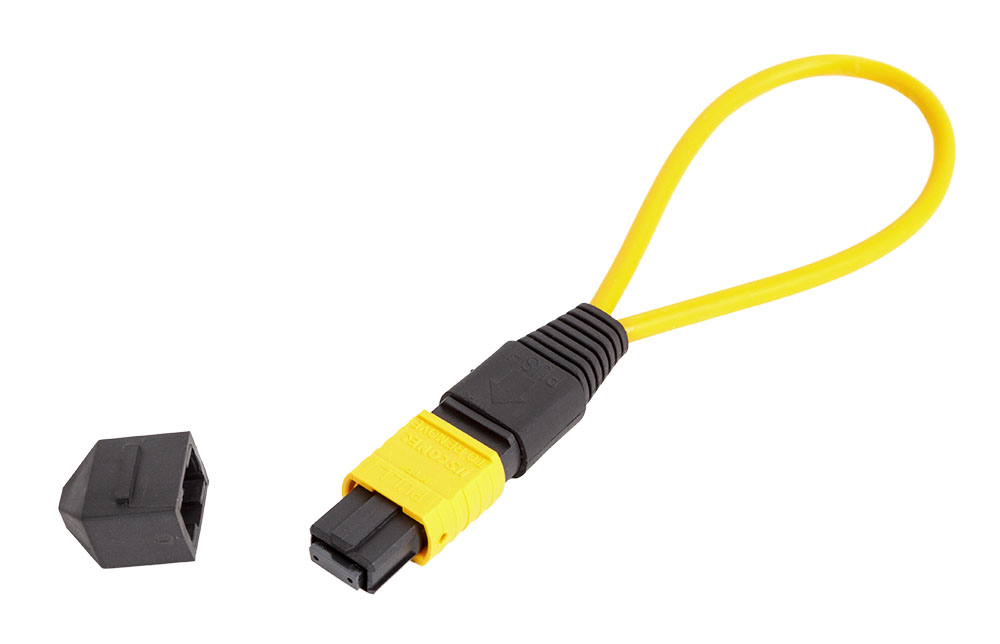

MPO/MTP Loopback

Allopto's MTP/MPO product family offers customer the flexibility needed for interconnecting opticalnetwork systems.

100% 3D test  by Sumix Interferometer and IL/RL test by JGR machine to guaranty the product performance.



FEATURES

· 100% tested before delivery

· MTP And MPO  available

· Trunk Cable Counts usually 8/12/16/24/32 fibers

· 3.0/3.6/4.5mm Round Cable or Customized

· SM/OM1/OM2/OM3/OM4/OM5 or Customized

· LSZH, OFNR, OFNP available



APPLICATION

· Data center cabling

· Serves to serves cabling

· Gigabit ethernet

· CATV,Video and Multimedia

· Telecommunication network

· Industrial & Milltary


SPECIFICATION


MPO/MTPSM StandardSM EliteMM StandardMM Elite
Insertion LossTypical0.35dB0.20dB0.35dB0.20dB

Max0.75dB0.35dB0.60dB0.35dB
Return LossAPC60dB≧25dB

PC50dB
Male/FemaleMale: with PinsFemale: without Pins
Changeability0.30dB
Tensile Strength0.30dB
Vibration≦0.30dB
Tempreture-20℃ ~ +75℃
