HD SWITCHABLE LC PATCH CORD

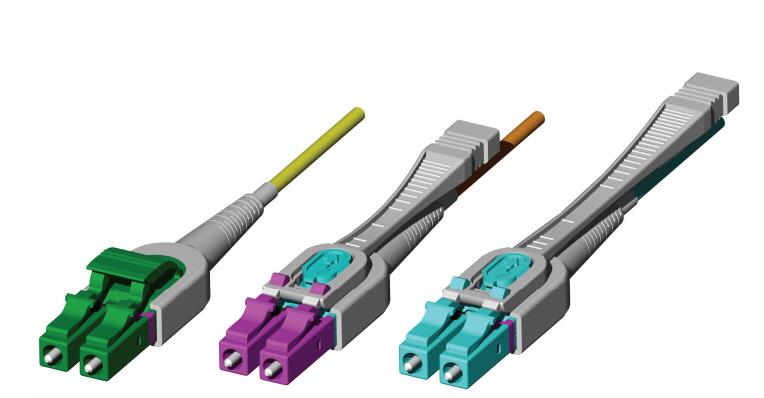

LC High Density switchable polarity connector is a unique design that allows the use of round style, 2.0mm or 3.0mm round cable instead of the traditional zipcord duplex cable for a more compact design.

The housing of the LC Duplex Switchable Connector can be taken apart in the without the use of any special tooling.

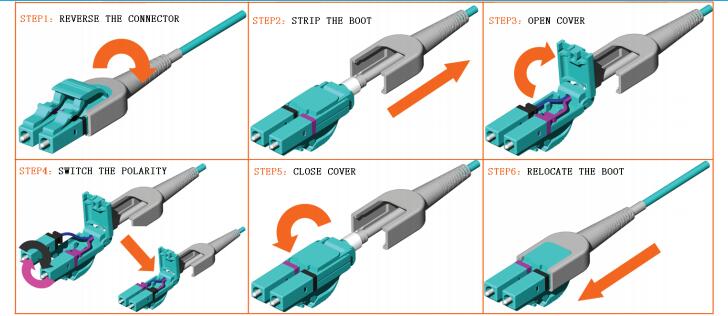

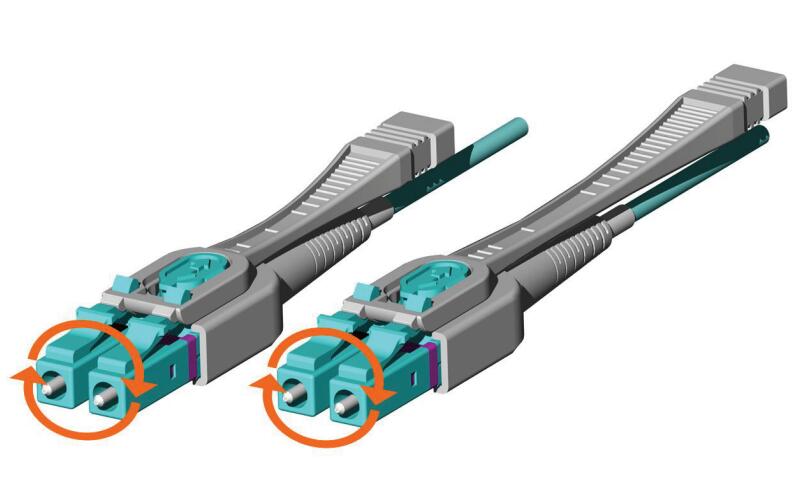

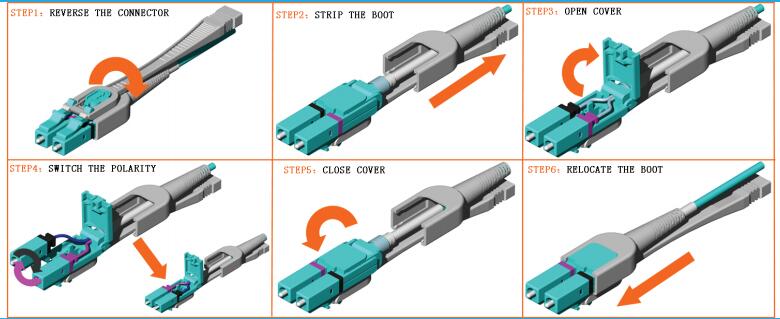

This duplex LC allows the polarity to be switched at the time of cable assembly installation without having to re‐terminate the connectors.


FEATURES

> Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
> Customer length
> Various connector type available
> Environmental stable

APPLICATION

> Telecommunication network
> CATV system
> Local Area Network
> Active/Passive device
> FTTH and FTTx

SPECIFICATION
Optical Performance
Single Mode
Multi Mode
Insertion Loss
≤0.20dB
≤0.30dB
Return Loss
≥45dB(PC)
≥35dB
≥50dB(UPC)
≥60dB(APC)
Repeatability
≤0.10dB
Durability
≤0.2dB typical change,1000 matings
Operating Temperature
- 20 ~ +75℃
Storage Temperature
- 40 ~ +85℃
Endface Geometry
Parameter
2.5μm ferrule

1.25μm ferrule
UPC
APC
UPC
APC
Radius of Curvature
10~25mm
5~12mm
7~25mm
5~12mm
Apex Offset
0~50μm
0~50μm
0~50μm
0~50μm
Fiber Height
-100~50nm
-100~100nm
-100~50nm
-100~100nm
Angle
--
7.7-8.3degree
--
7.7-8.3degree
3D - Geometry
