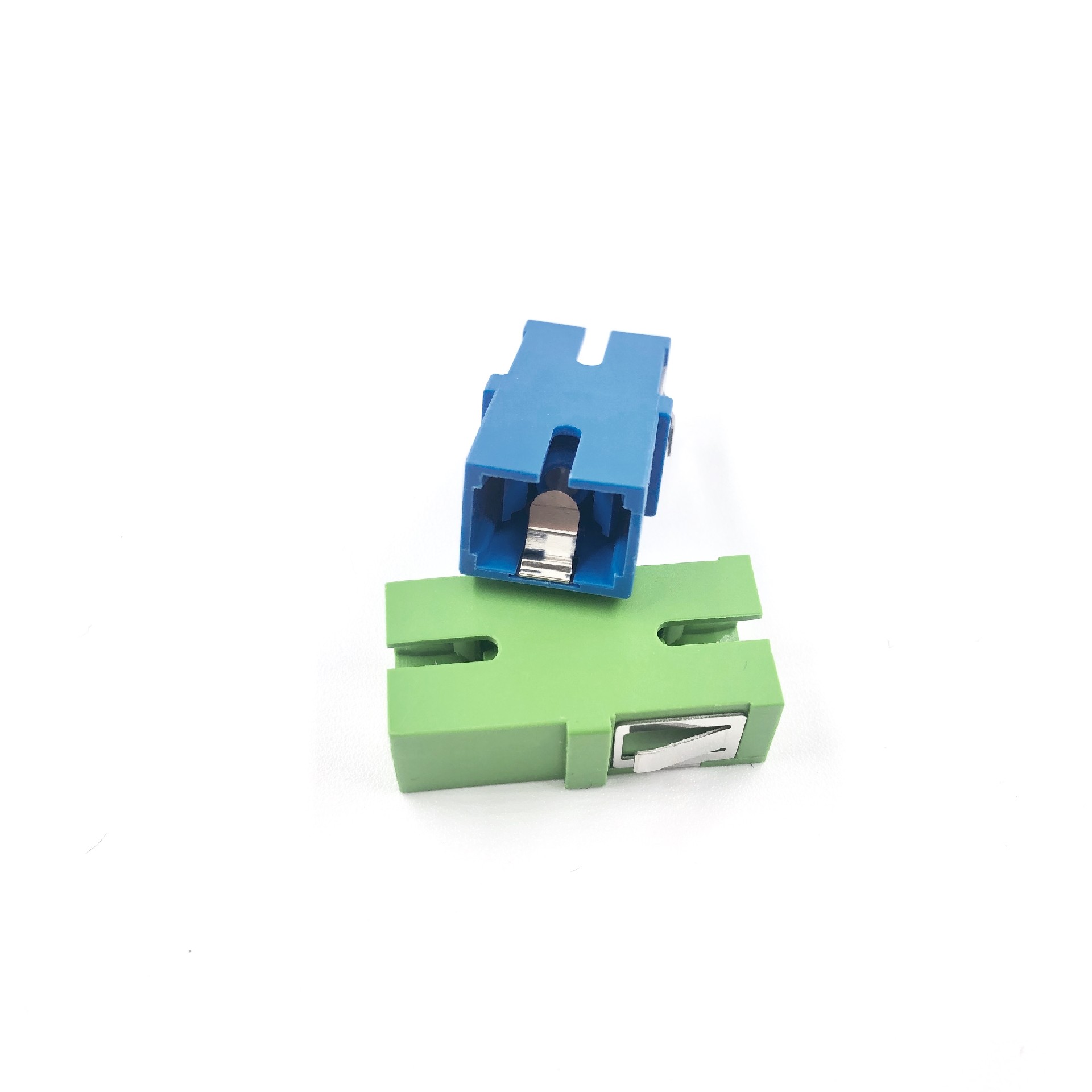

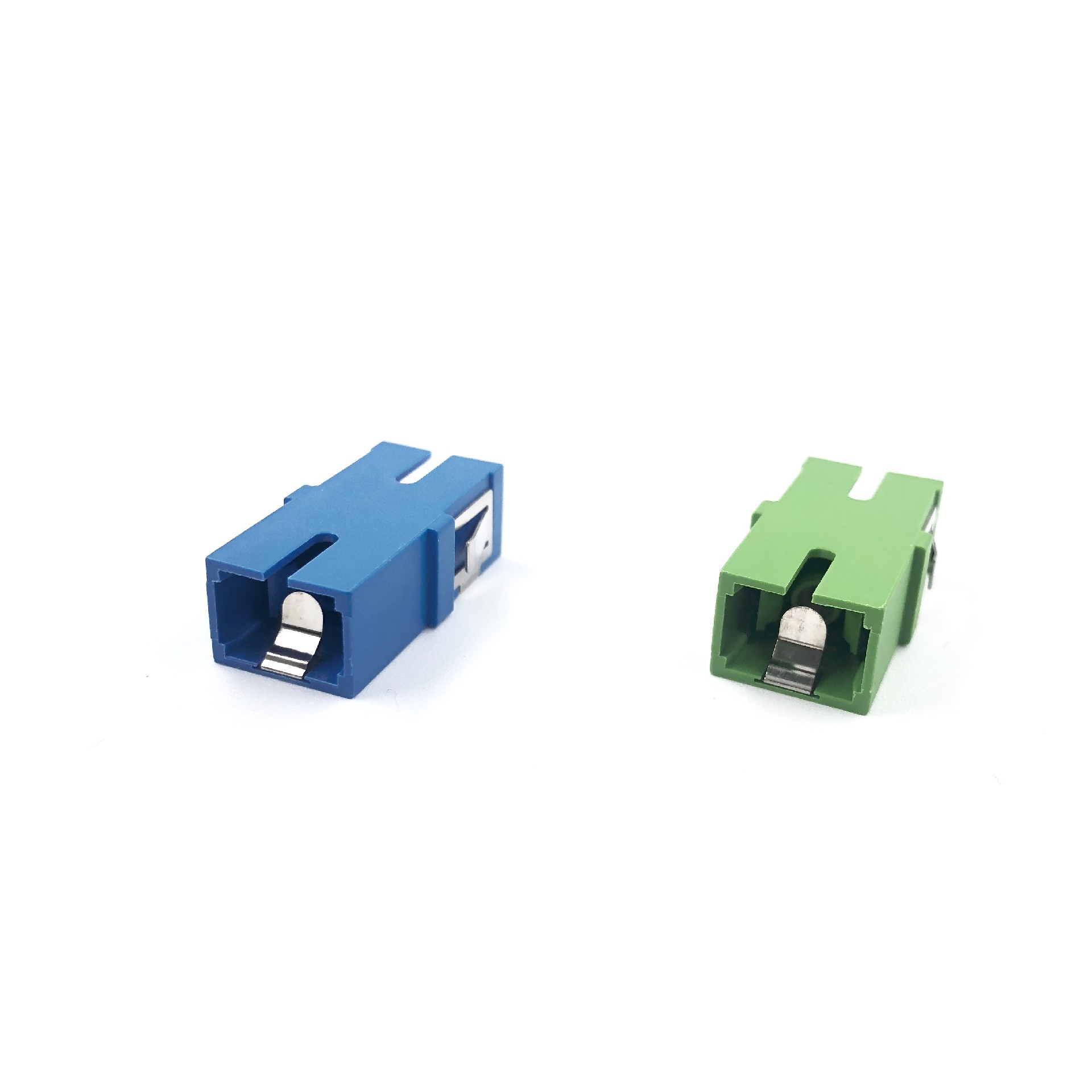

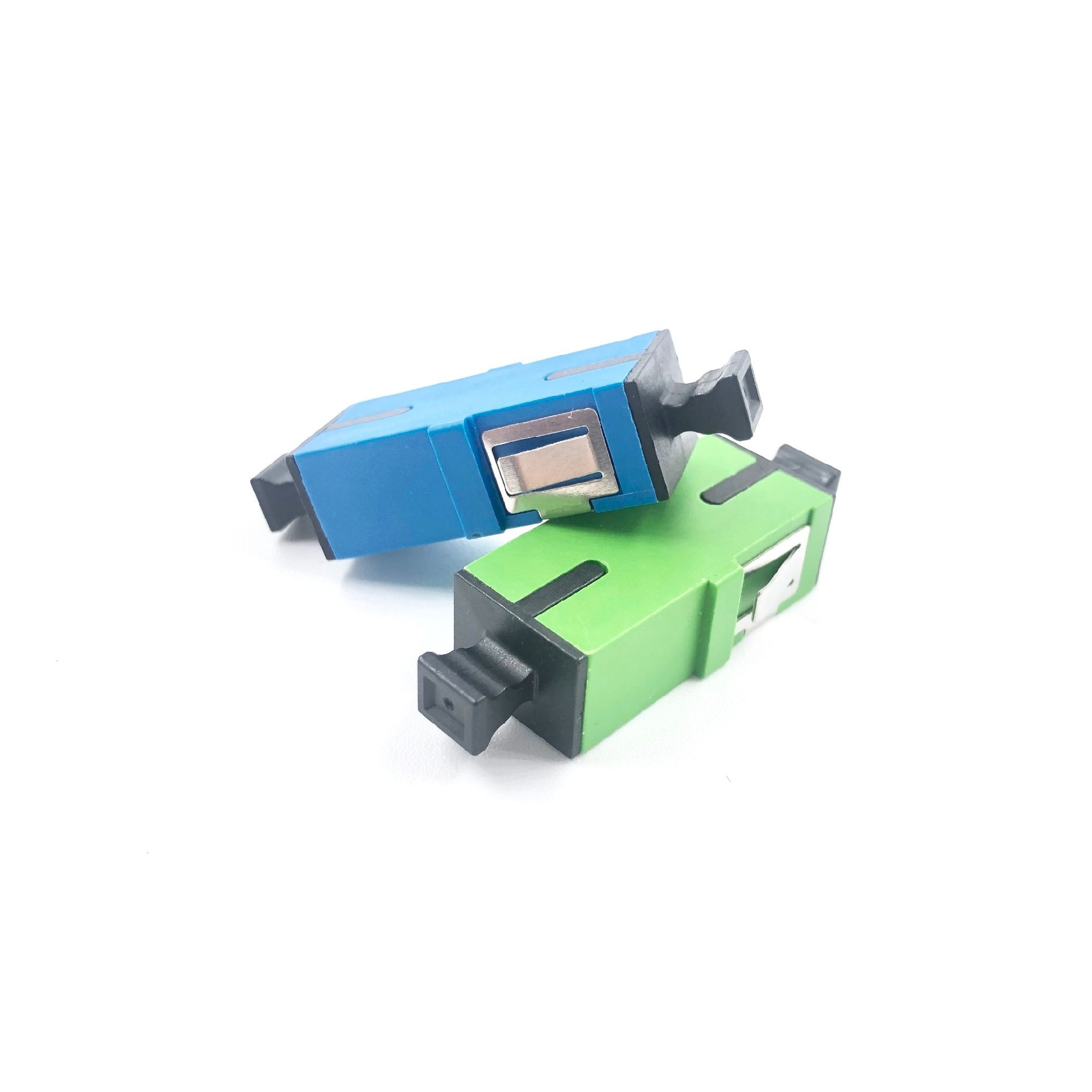

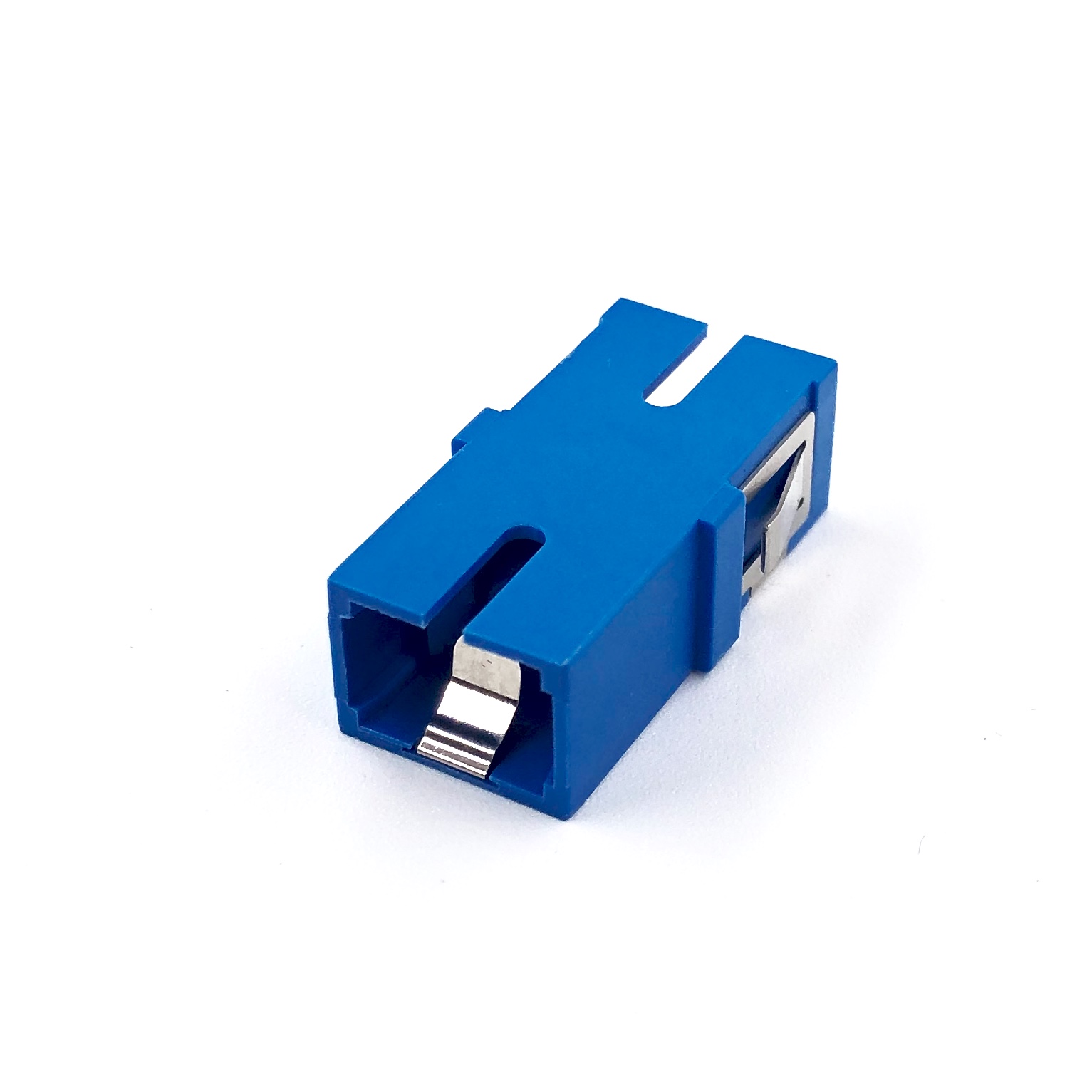

SC Internal Shutter SX Adaptor



Connector Finish

Sleeve Type

Fiber Core

Housing Color

Sleeve Grade

P=PC
A=APC

C=Ceramic
P=P,B

S=Simplex
D=Duplex
Q=Quad

W=White/Beige
B=Blue
G=Green
M=Metal

P=Premiun Japanese
A=A grade Chinese sleeve
B=B grade Chinese sleeve
C=P,B Sleeve



FEATURES

> Low Insertion Loss
> Compliant with Telcordia GR-326-Core,IEC,TIA
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic or PB Sleeves
> Avaliable Hybrid Adaptors/Shutter Adaptor

APPLICATION

> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN

SPECIFICATION
Optical Parameter
W/ Japanese Ceramic Sleeve
W/ Chinese Ceramic Sleeve
W/ P.B Sleeve
Insertion Loss
<0.10dB
<0.20dB
<0.30dB
Durability
<0.10 dB typical change, 1000 times
<0.20 dB typical change, 1000 times
<0.30 dB typical change, 500 times
Operating Temp.
-20 ~+ 75℃
Storage Temp.
-40 ~+ 85℃
