Allopto's LC IS Adapter has been updated with a new trimmer and compact footprint. The reduced height allows for high-density packaging and the choice of side or vertical spring latches provides custom installation options. The internal shutters provide maximum protection from lasers, dust, and other debris while protecting the ferrule.
- SM, MM, and APC

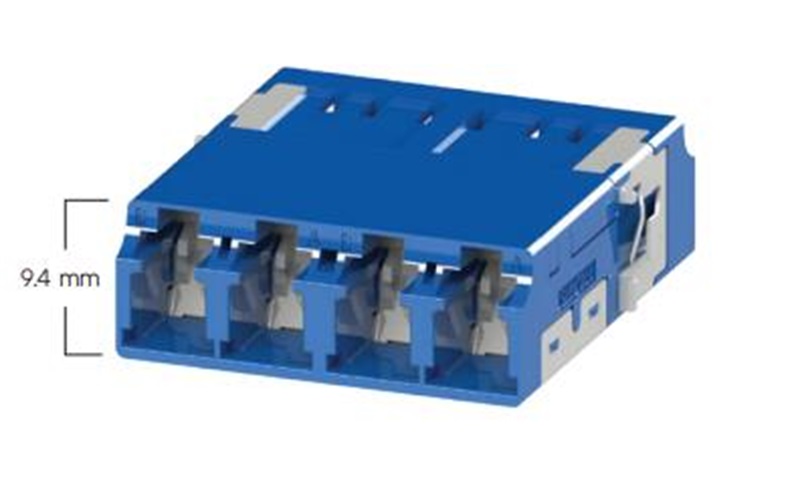

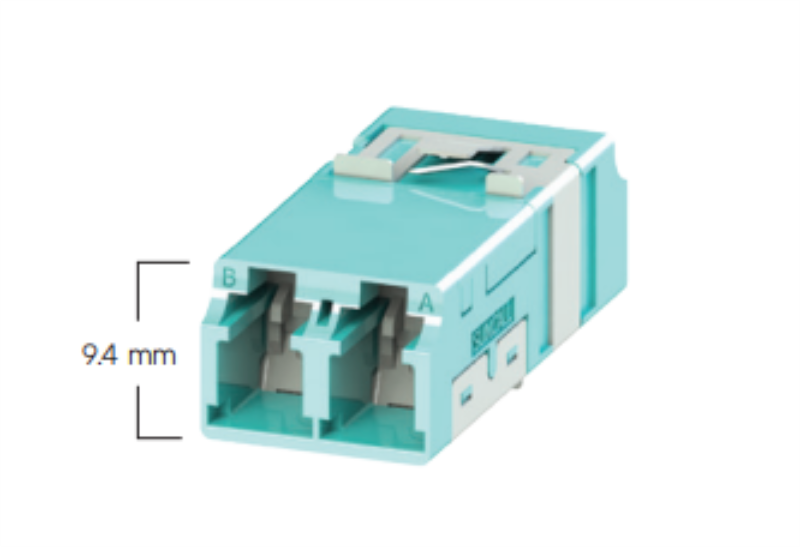

- New height is 9.4 mm vs. original 11.4 mm
- SC simplex/duplex foot print
- Duplex and Quad types
- Designed for high-density panels

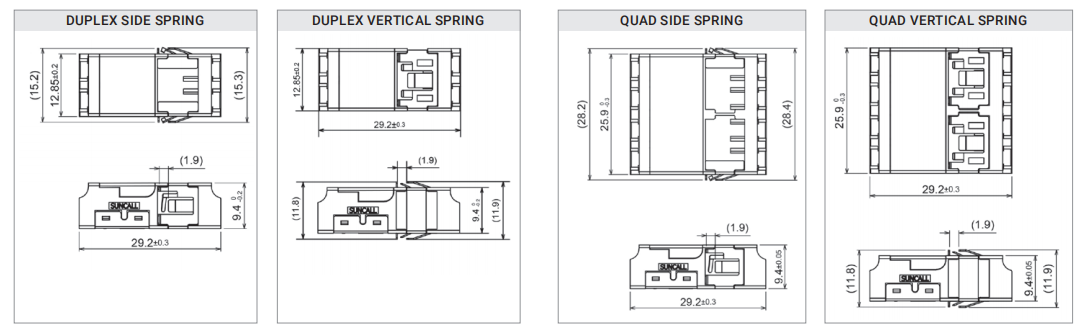

- Two spring latch designs available:
• Side spring latches for top-bottom HD mounting
• Vertical spring latches for side-by-side HD mounting
- No metal shroud on front allows housing color to be visible when mounted
- Available in a variety of housing colors
- Shutter door options: white or translucent
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
Durability | <0.10 dB typical change, 1000 times | <0.20 dB typical change, 1000 times | <0.30 dB typical change, 500 times |
Operating Temp. | -20 ~+ 75℃ | ||
Storage Temp. | -40 ~+ 85℃ | ||
