Connector Finish | Sleeve Type | Fiber Core | Housing Color | Sleeve Grade |
P=PC A=APC | C=Ceramic P=P,B | S=Simplex D=Duplex Q=Quad | W=White/Beige B=Blue G=Green A=Aqua V=Voilet | P=Premiun Japanese A=A grade Chinese sleeve B=B grade Chinese sleeve C=P,B Sleeve |
> Low Insertion Loss
> Compliant with Telcordia GR-326-Core,IEC,TIA

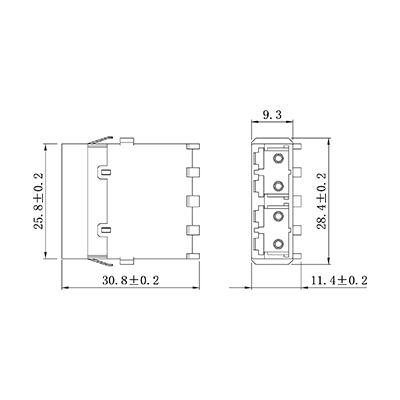

> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic or PB Sleeves
> Avaliable Hybrid Adaptors/Shutter Adaptor
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
Durability | <0.10 dB typical change, 1000 times | <0.20 dB typical change, 1000 times | <0.30 dB typical change, 500 times |
Operating Temp. | -20 ~+ 75℃ | ||
Storage Temp. | -40 ~+ 85℃ | ||
