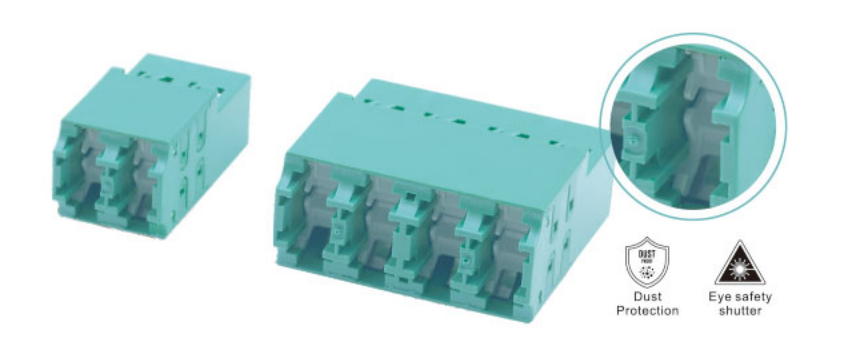

Polarity conversability is available directly with an ordinary duplex connector
No need operation in disassembly and reversing the connectors
Dust proof and laser proof acheived in the design
Easy and efficient for field operation
Highly reliable structure design
Built with high performance material
> Low Insertion Loss
> Compliant with Telcordia GR-326-Core,IEC,TIA
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic or PB Sleeves
> Avaliable Hybrid Adaptors/Shutter Adaptor
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
Durability | <0.10 dB typical change, 1000 times | <0.20 dB typical change, 1000 times | <0.30 dB typical change, 500 times |
Operating Temp. | -20 ~+ 75℃ | ||
Storage Temp. | -40 ~+ 85℃ |
