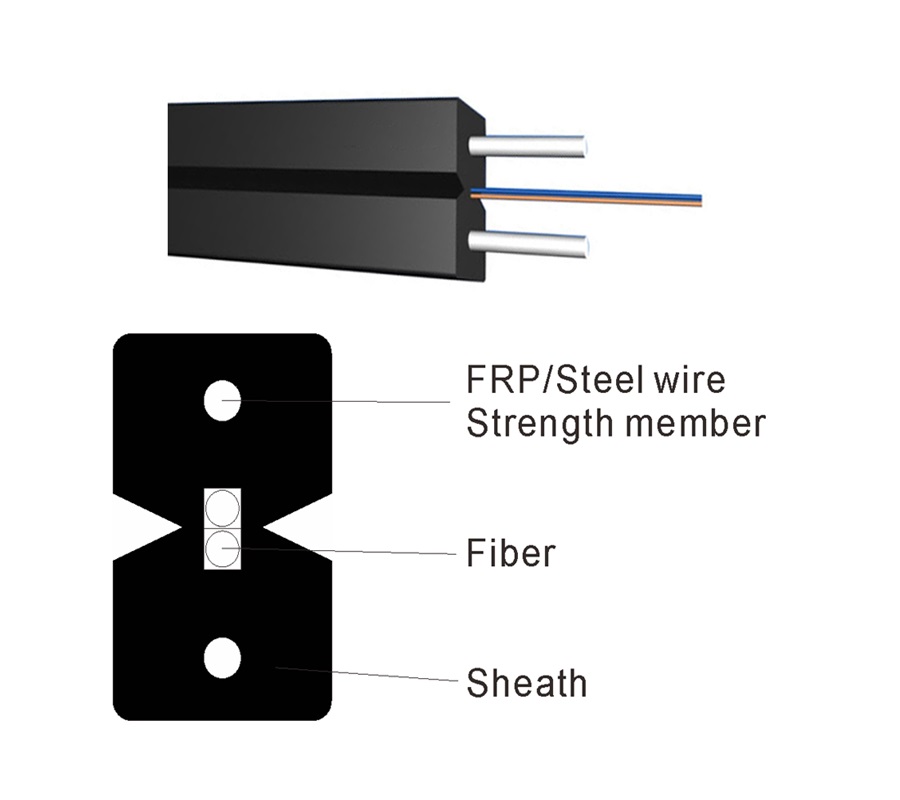

FTTH Drop Cable is all dielectric drop cable consisting of 1 to 4, 250μm individually coloured optical fibres with Fibre Reinforced Plastic (FRP) strength members and UV resistant Low Smoke Zero Halogen (LSZH) or PE jacket.
Simple and convenient structure,convenient for indoor cabling
Good design for lateral crushing resistance
Fiber count is 1-4 cores,can be other fiber count upon request
White color for indoor use,can also be other color upon request
LSZH material for outer jacket,can also be other material upon request
As FTTH cable,for indoor horizontal and vertical cabling
Indoor cabling under carpet and along corner
| Items | Description | ||
| Optical Fiber | Fiber Count | 1,2,4fiber | |
| Strength Member | Material | FRP | |
| Diameter | 0.6mm/0.52mm | ||
| Sheath | Material | LSZH | |
| Thickness | Minimum 0.4mm | ||
| Cable Dimension | Width×Height | Max :3.0×2.0mm | |
| Cable Weight | Net weight | Approx. 8kg/km | |
| Fiber Color Code | 1-Blue，2-Blue,Orange，4-Blue,Orange,Green,Brown | ||
