AO-FCO-02


FEATURES

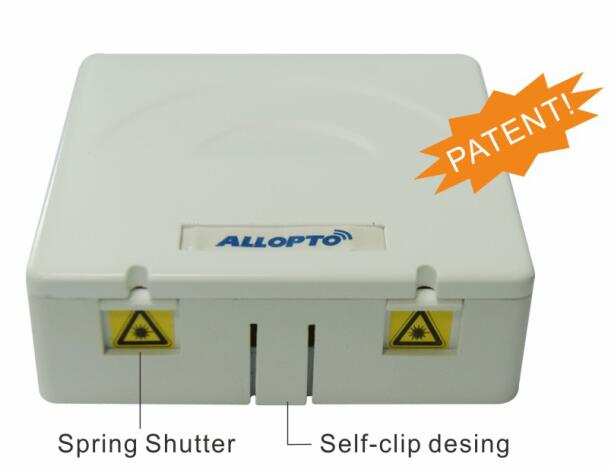

> Spring shutter cover design for laser protection & dust-proof
> Self-clip design for easy operation

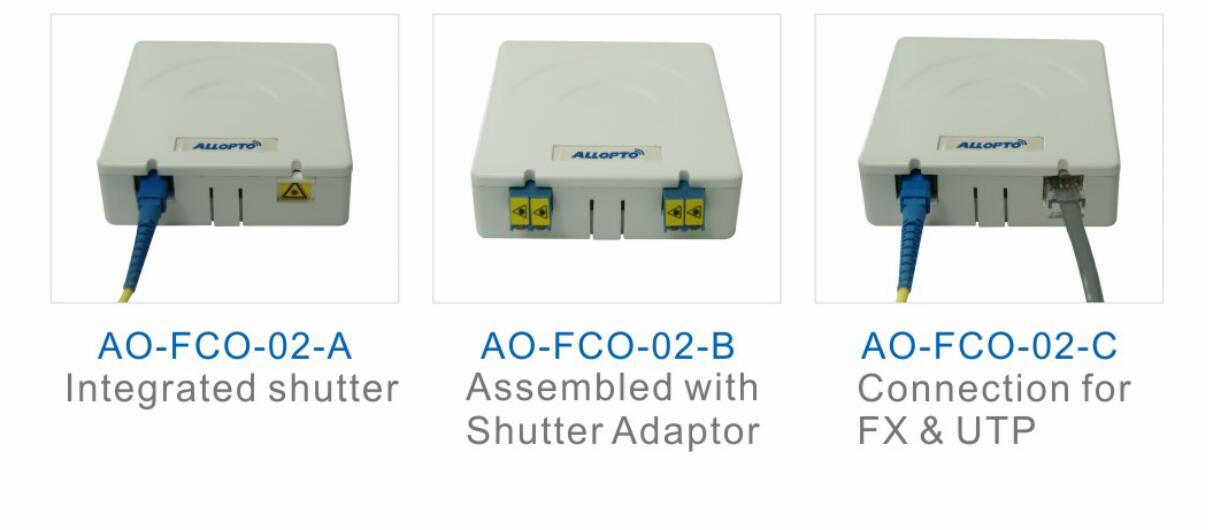

> Optional assembled with SC or LC shutter adaptor
> Optional for both fiber and RJ45 Connection
> Store surplus fiber inside, Rear and bottom cable entry
> Integrated heat shrink splice and mechanical splice holder

APPLICATION

> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks

SPECIFICATION
Maximum Single Fibre Count
Number of Outlet
Dimension (LXWXH)
Color
Material
RoHS
4F
2 x SC SX
2 x LC DX
1FX+1UTP
86x86x26 mm
White
PC+ABS
Compliance
