FS-W-2D

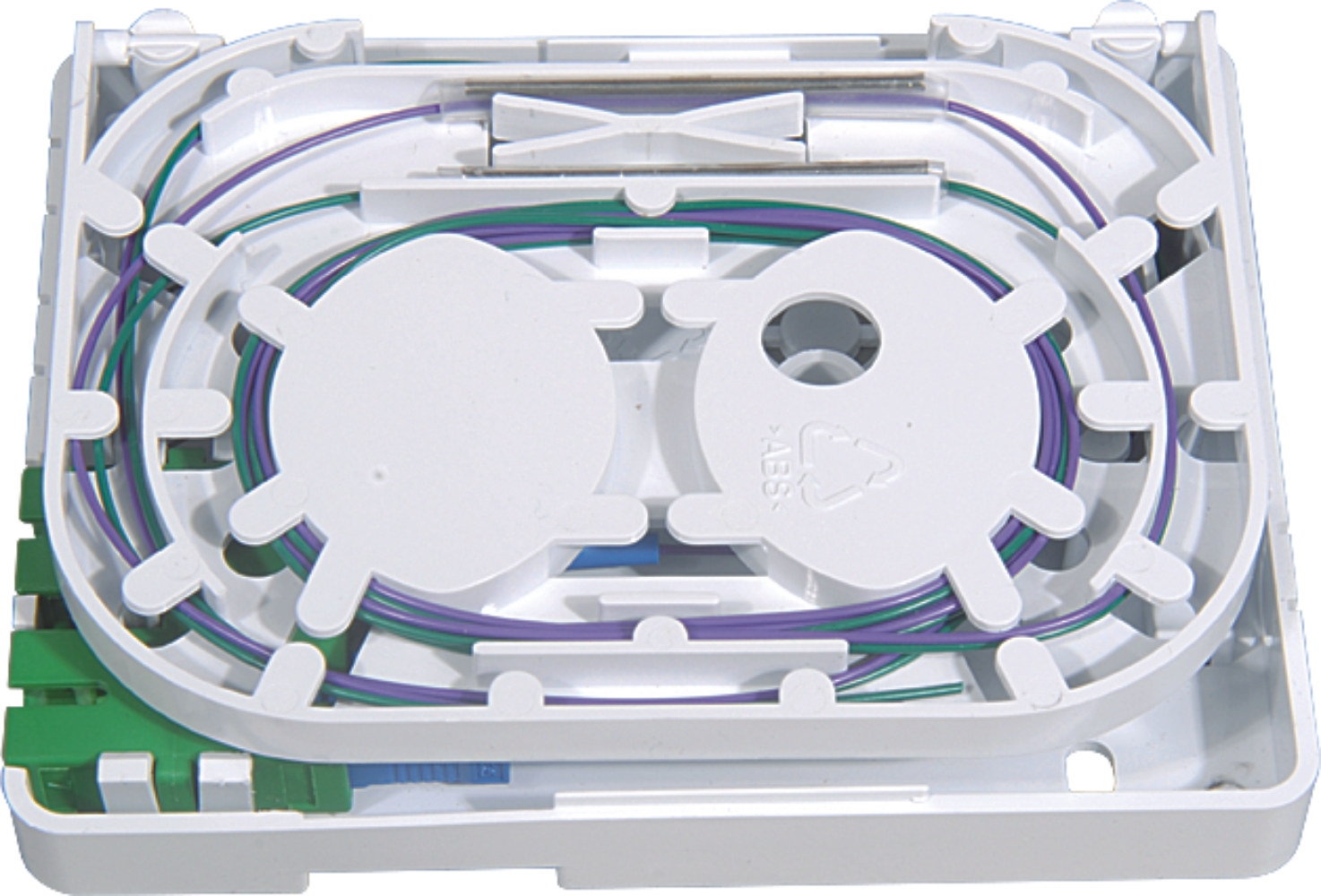

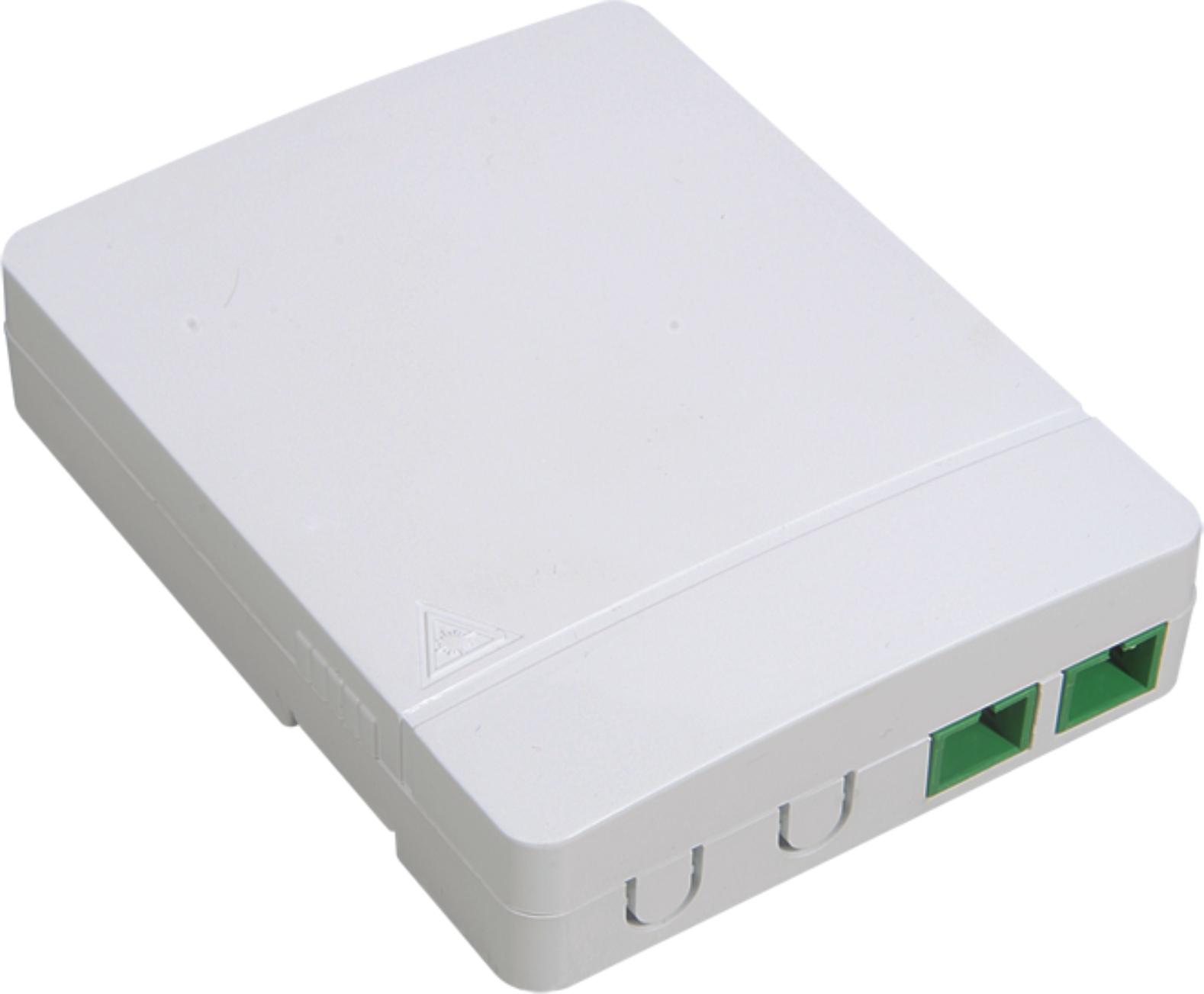

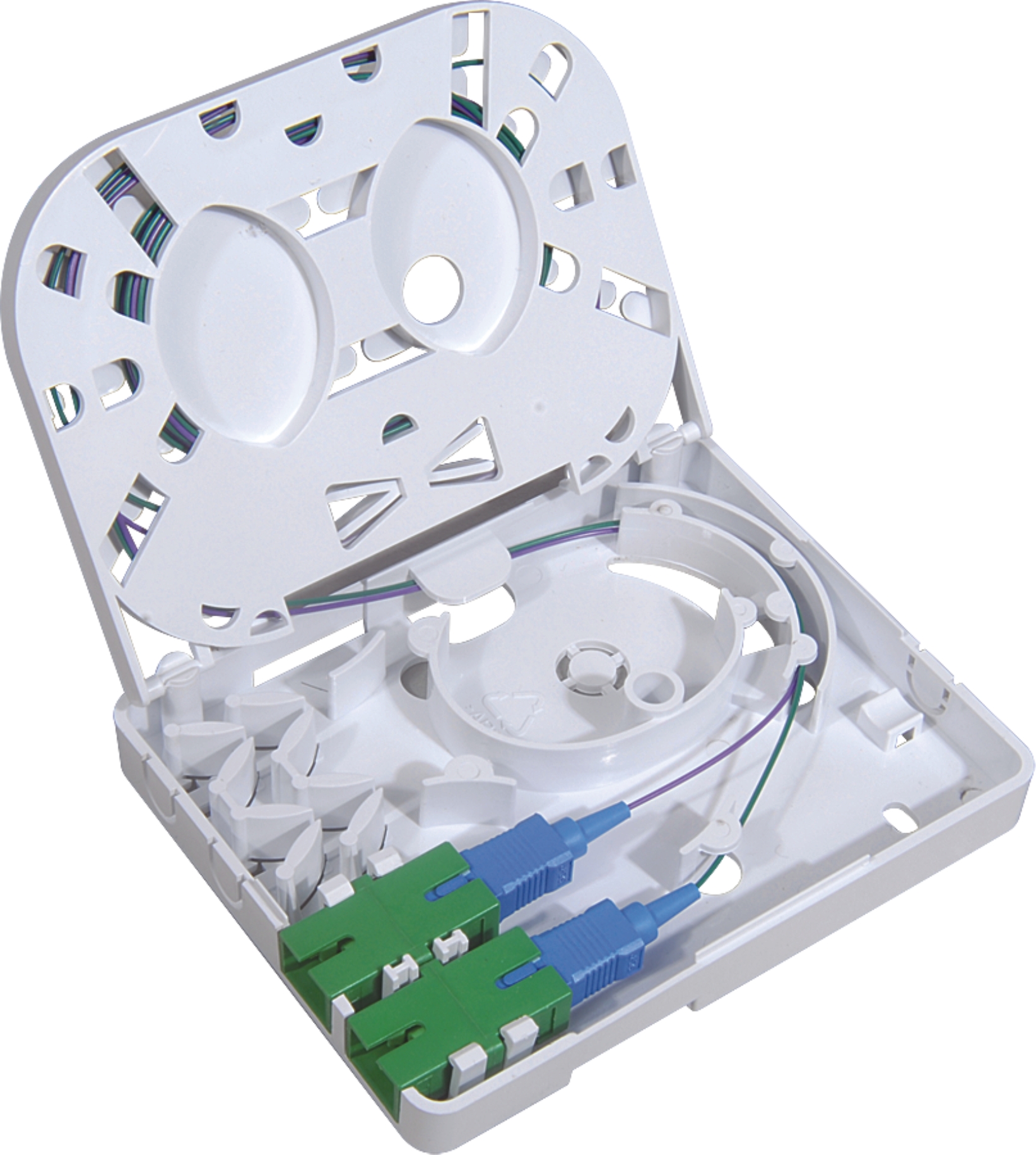

FS-W-2SC-D wall outlet is designed for use in residential and business applications for the termination of up to four fibers.

This wall box enables the installation of either Drop cable or ruggedized cables to be spliced to 2 SC Pigtails.

FEATURES

> Fiber termination/Connection ports option
> Optical splice capability
> Compact design
> Compatible with most cable management system

APPLICATION

> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks

SPECIFICATION
ParametersValue
Number of Port2
Max. Splicing Capacity2 Splices
Suitable Adapter TypeSC Simplex
MaterialABS
Operating Temperature-25 °C / +60°C
ColorWhite
Compliant RoHS
MountingWall mount
Dimension105x82x23 mm
