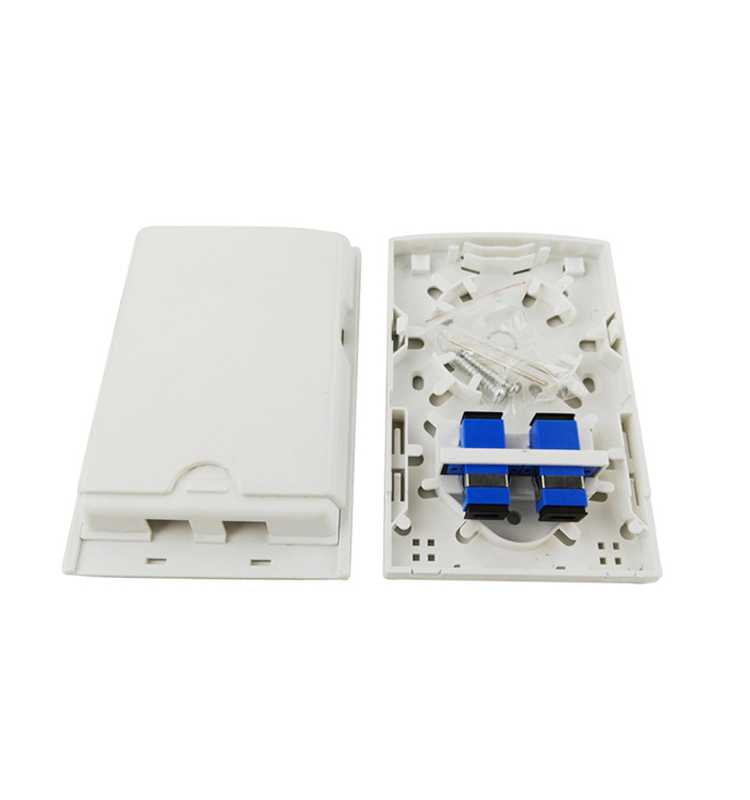

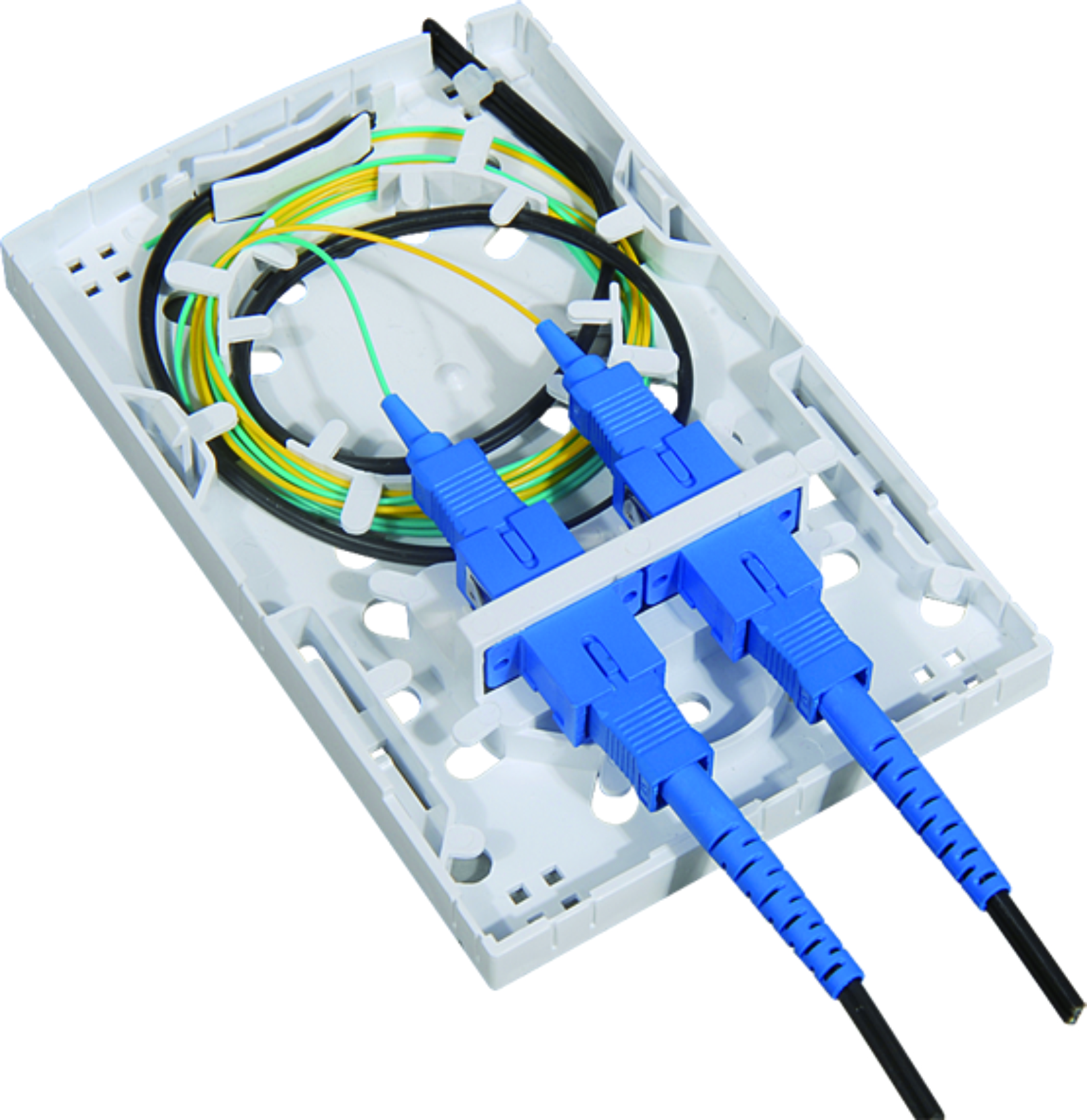

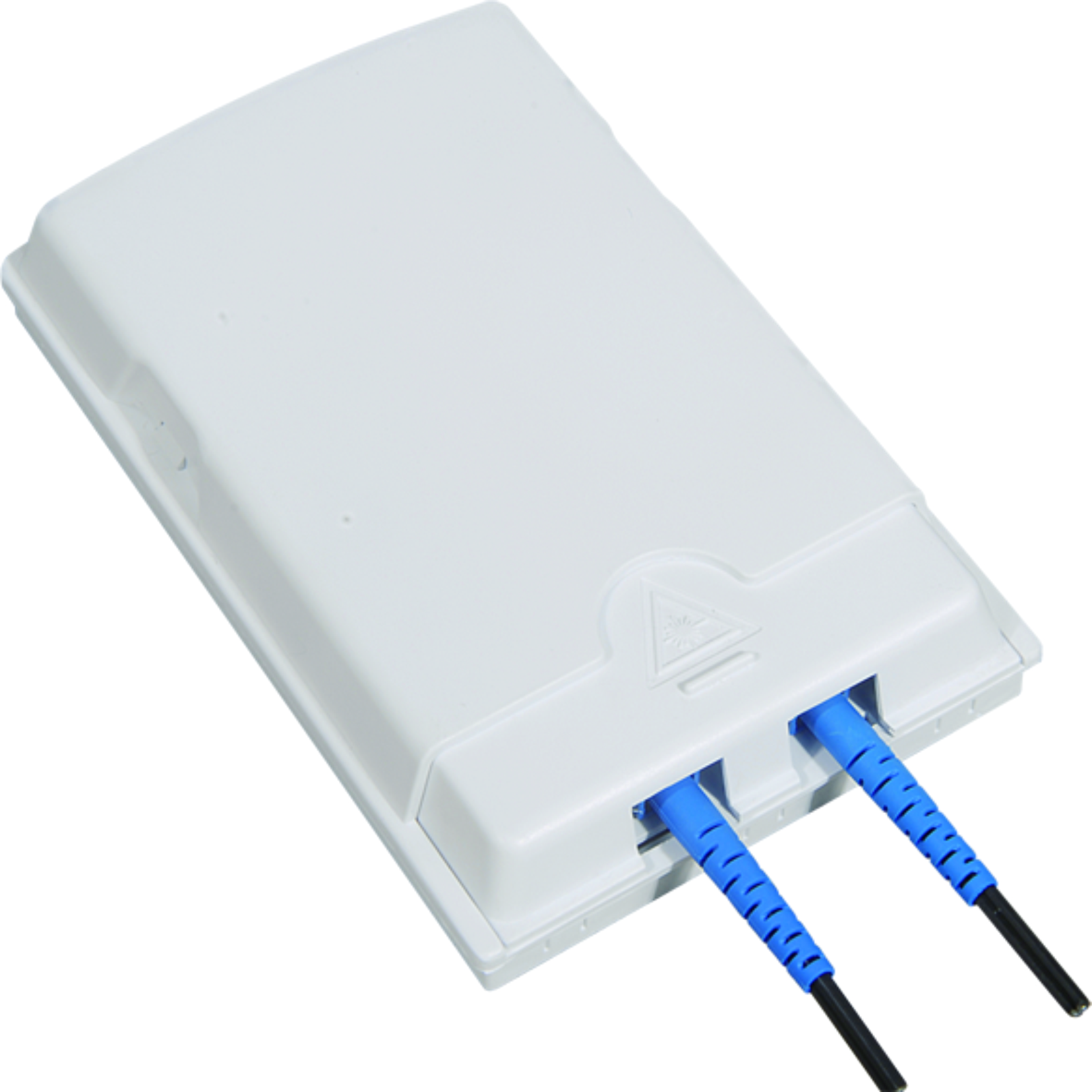

FS-W-2H

FS-W-2H wall outlet features 2 ports,supporting SC simplex adaptor or LC duplex adaptor.

The box adopts the sliding cover type which is compact and easy for installation.It is usually applied in FTTH,FTTD fiber cabling.


FEATURES

> Fiber termination/Connection ports option
> Optical splice capability
> Compact design
> Compatible with most cable management system

APPLICATION

> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks

SPECIFICATION
ParametersValue
Number of Port2
Max. Splicing Capacity2 Splices
Suitable Adapter TypeSC Simplex
MaterialABS
Operating Temperature-25 °C / +60°C
ColorWhite
Compliant RoHS
MountingWall mount
Dimension84x130x24 mm
