FS-W-4F

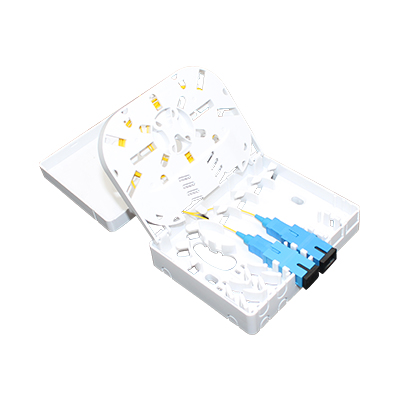

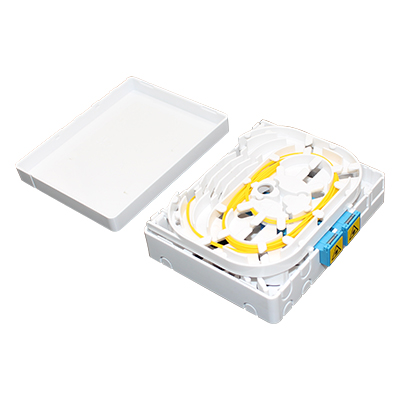

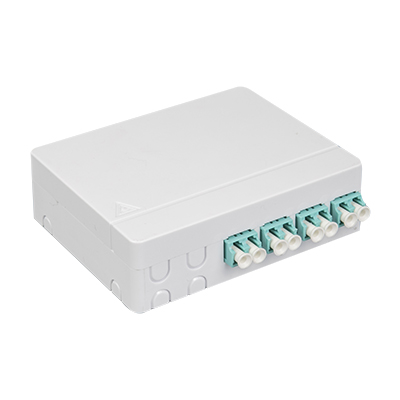

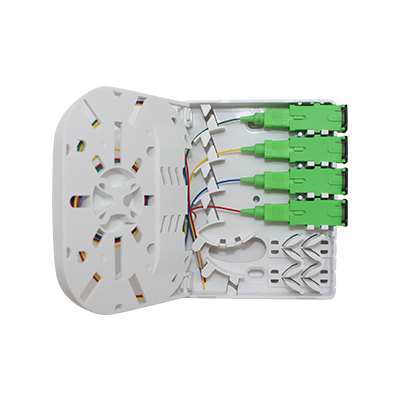

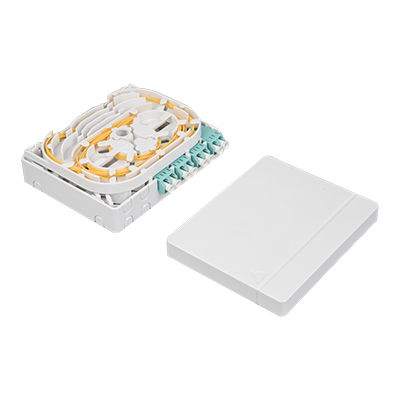

FS-W-4F compact termination box is designed for use in residential and business applications.

This wall box enables the installation of 4 fiber ruggedized cables to be spliced to 4 SC pigtails which connect to adapters at the base of the unit.

The unit can be quickly installed within an office, house or communication room environment.


FEATURES

>SC Simplex Adapter type

>Ergonomic Design

>Flip tray to allow access to pigtails and Cable entry

>Removable cover for easy access

>DIN Rail Mounting


APPLICATION

> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks

SPECIFICATION
ParametersValue
Number of Port4
Max. Splicing Capacity4 Splices
Suitable Adapter TypeSC Simplex
MaterialABS
Operating Temperature-25 °C / +60°C
ColorWhite
Compliant RoHS
MountingWall mount
Dimension100x80x29 mm
