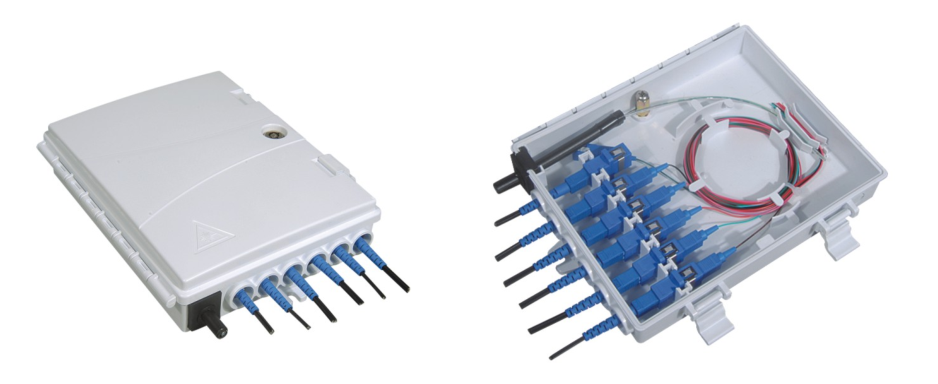

FDB-G-6A

FDB-G-6A is used as a termination point for the feeder cable to connect  with drop cable in FTTx communication network system. The fiber splicing, splitting  and distribution can be done in this box, and in meanwhile, it provides solid  protection and management for the FTTx network building

FEATURES

> Fiber termination/Connection ports option
> Optical splice capability
> Compact design
> Compatible with most cable management system

APPLICATION

> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks

SPECIFICATION
ParametersValue
Model No.FDB-G-6A
Number of Port6
Max. Splicing Capacity6 Splices
Suitable Adapter TypeSC Simplex/LC Duplex
PLC Splitter 1x4
MaterialPC+ABS
Operating Temperature-25 °C / +60°C
ColorWhite
Compliant RoHS
MountingWall mount  or pole mount
Dimension150x120x37 mm
