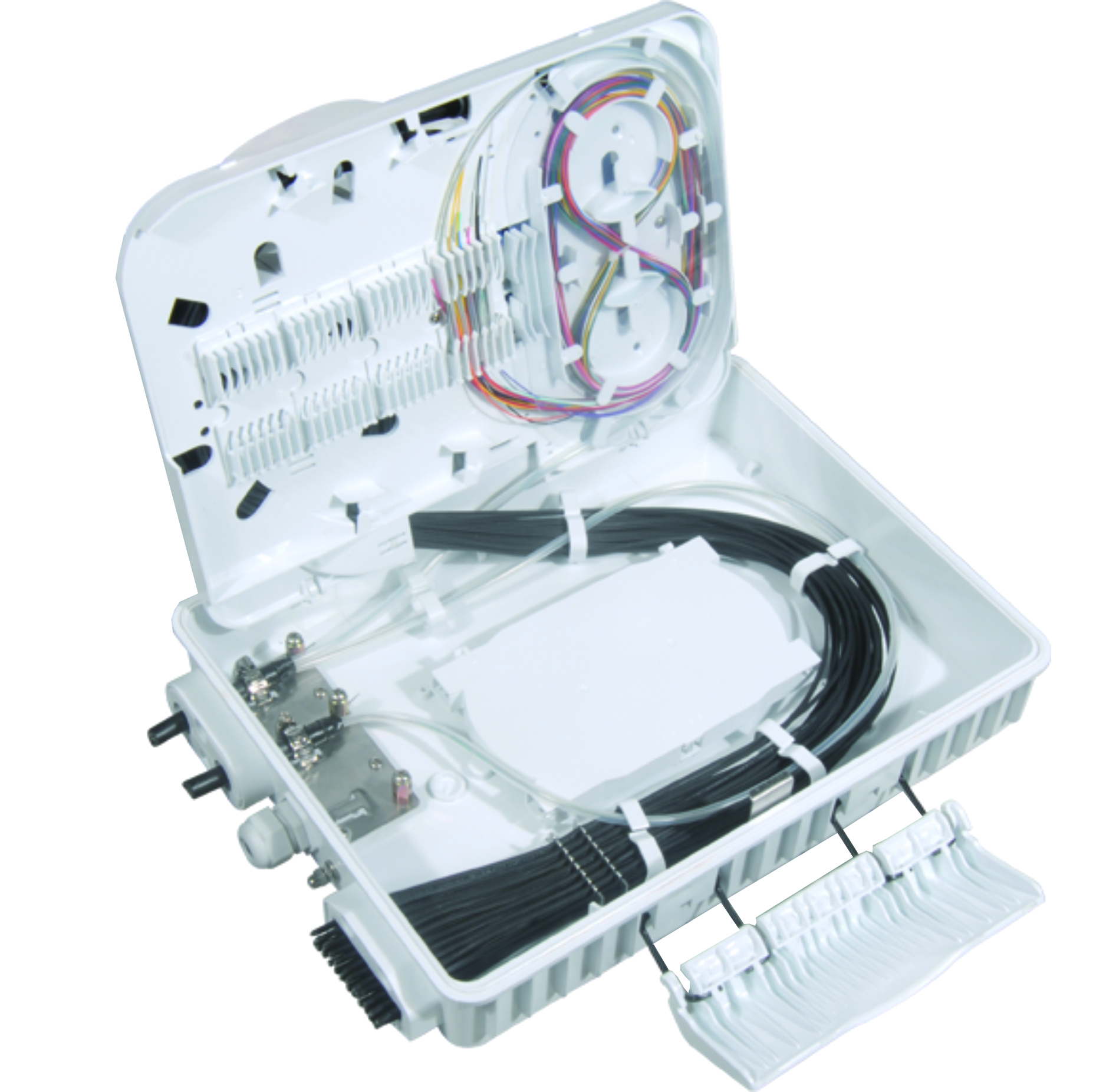

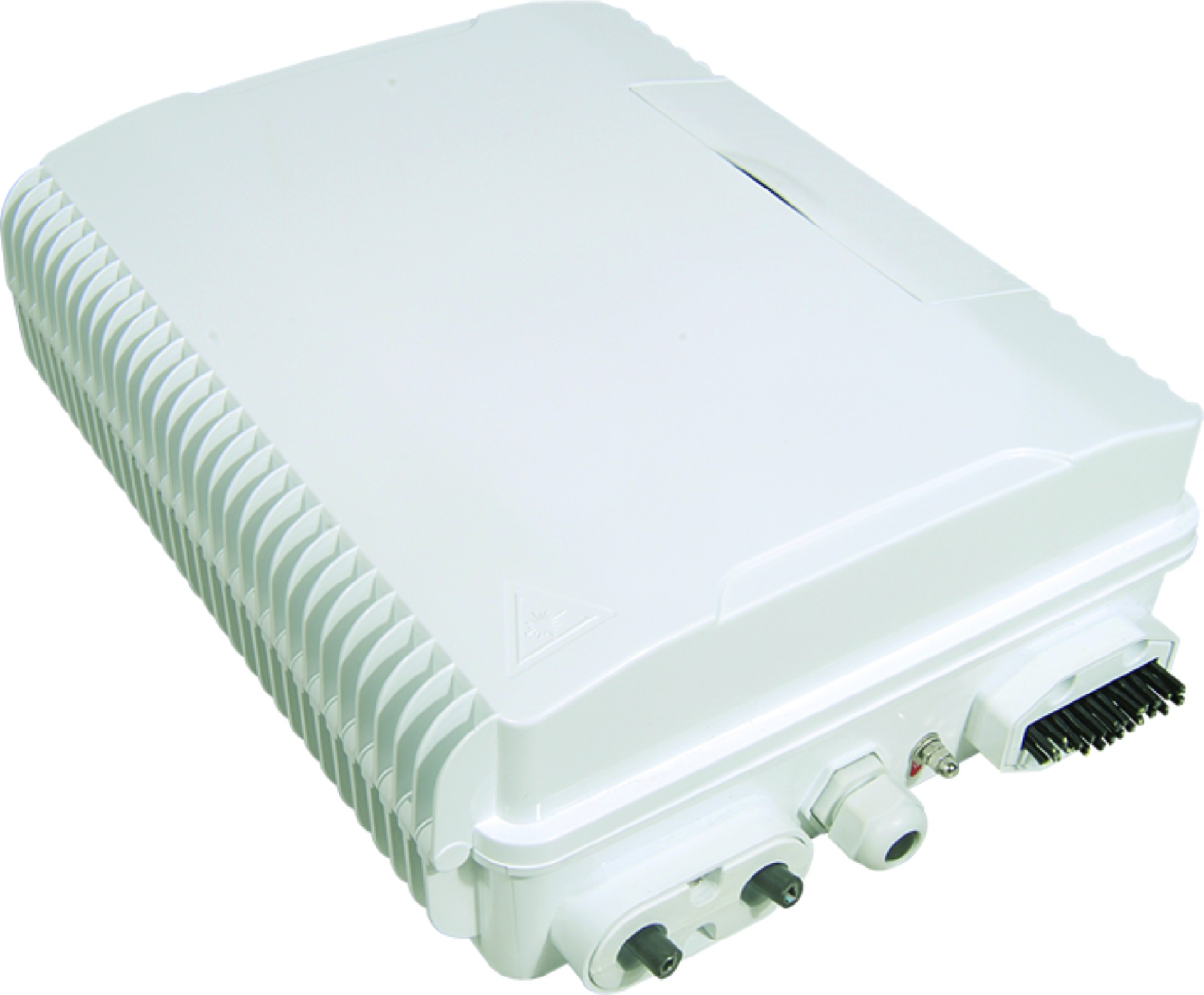

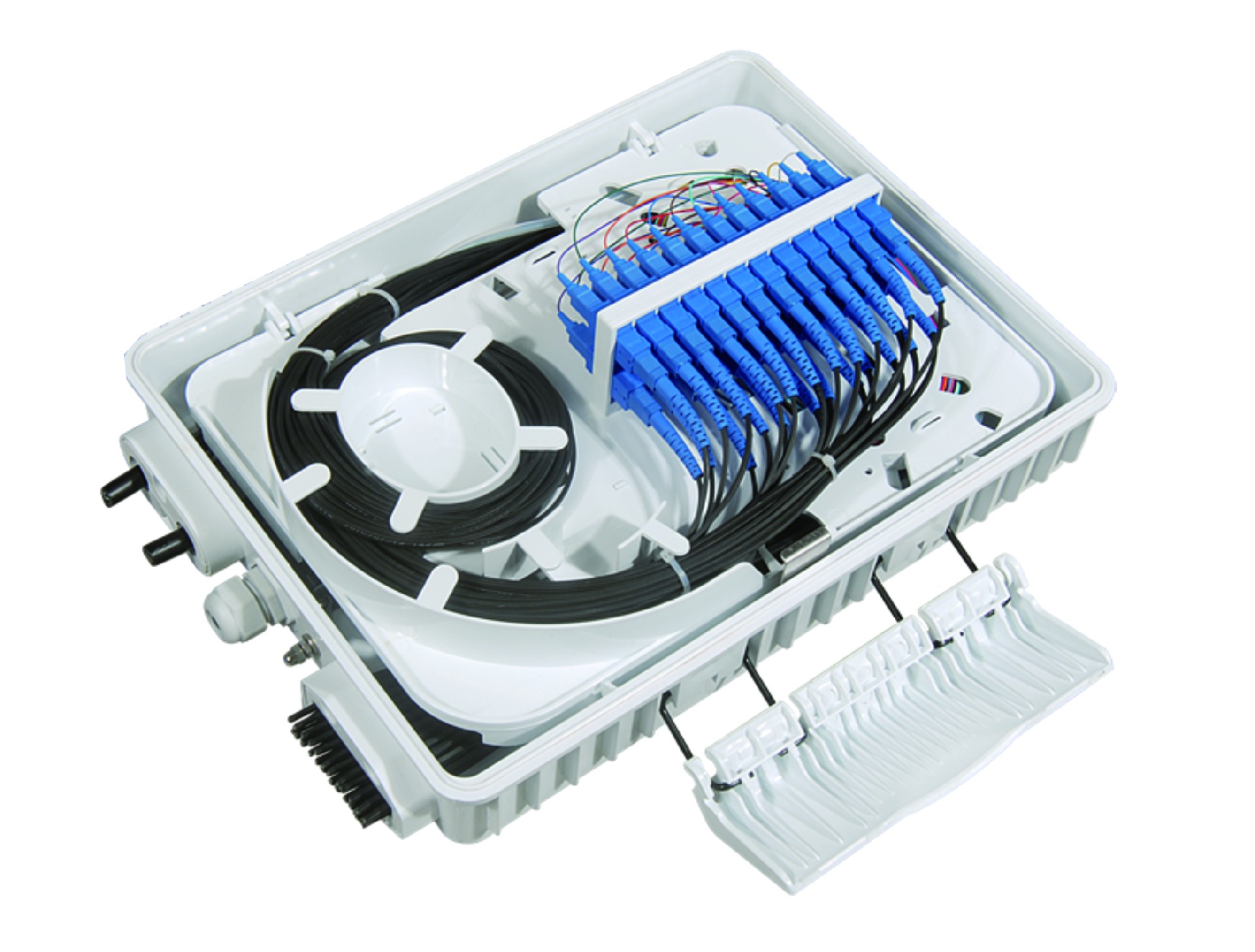

FDB-G-24E is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTx network building
> Fiber termination/Connection ports option
> Optical splice capability
> Compact design
> Compatible with most cable management system
> Telecommunication Networks
> CATV Networks
> Local Area Networks
> Instrumentation
> Data communication Networks
| Parameters | Value |
| Model No. | FDB-G-24E |
| Number of Port | 24 |
| Max. Splicing Capacity | 24 Splices |
| Suitable Adapter Type | SC Simplex/LC Duplex |
| PLC Splitter | 3pcs 1x8 |
| Material | PC+ABS |
| Operating Temperature | -25 °C / +60°C |
| Color | White |
| Compliant | RoHS |
| Mounting | Wall mount or pole mount |
| Dimension | 340x250x110 mm |
