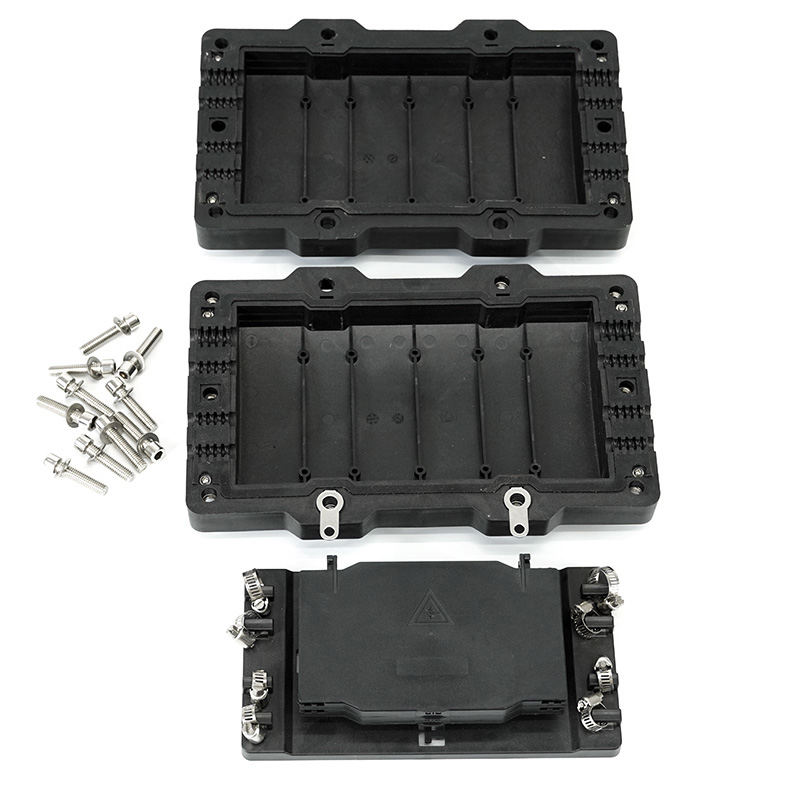

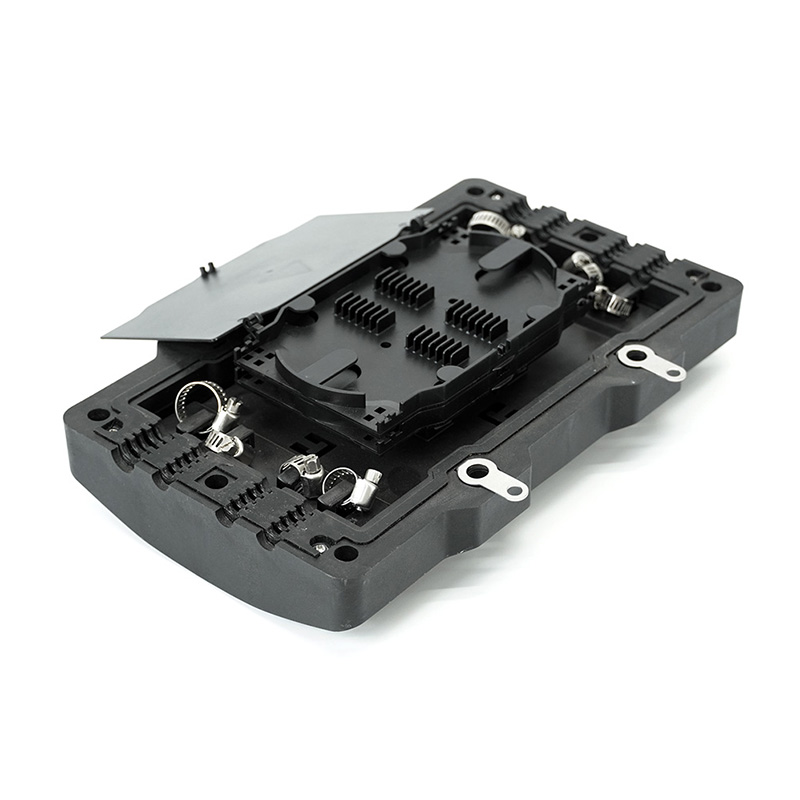

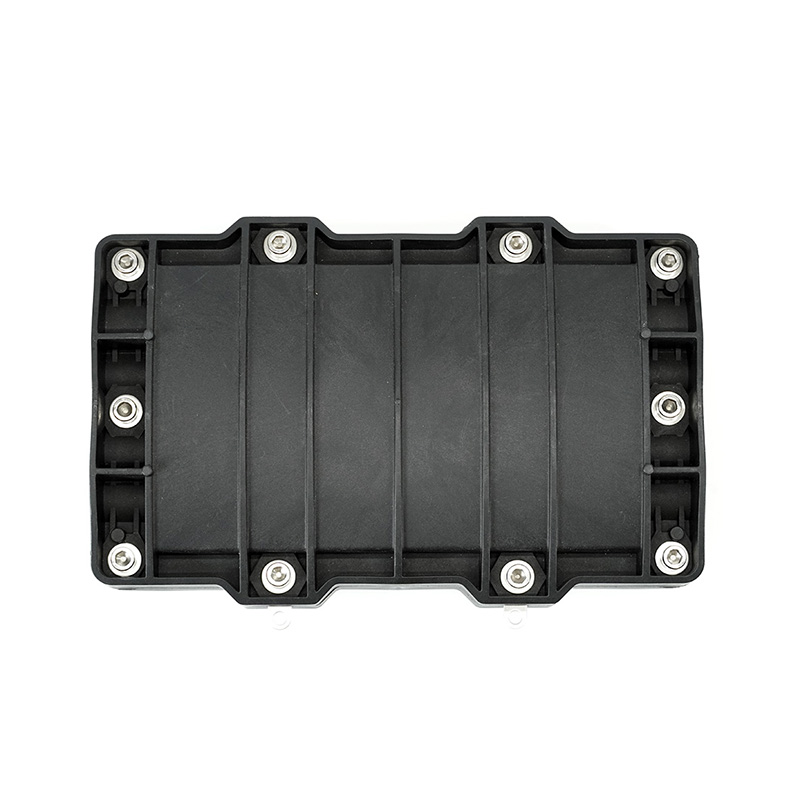

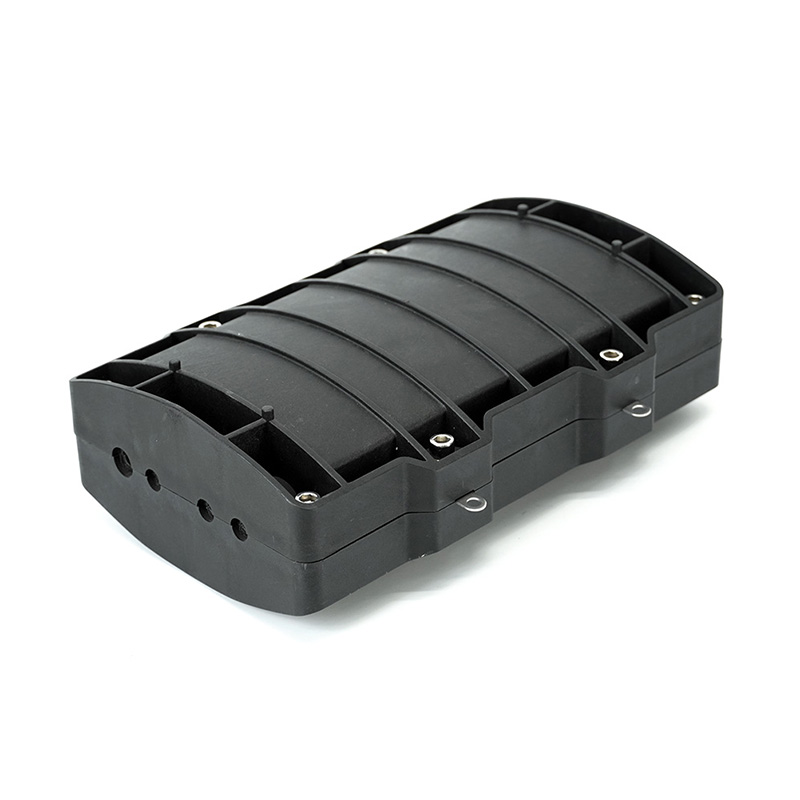

AO-09-6208 inline closure is a piece of versatile fiber optic connection equipment applicable to fusion splice, fiber storage and distribution.
Ports: 4 inlets and 4 outlets, 6 for φ6～8mm cables, 2 for φ9～12mm cables；
Capacity: 2 pcs 24-core splice trays, max. 48F
Sealing: bolt structure mechanical seal, IP68
Installation: aerial, duct mounting；
Compact design, simple structure, easy operation；
Pressing buckles for cable securing, ensuring cable torsion, tension, pressure and bending performance；
Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment。
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Dimensions (mm) | Weight (kg) | Inner Carton (mm) | Outer Carton (mm) |
| AO-09-6208 | 280×180×85 | 1.8~2.2kg | 300×230×110 | 485×325×465（8 PCS） |
