AO-09-9408 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design. It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.
Ports: 4 inlets/outlets, φ10-16mm; 16 drop ports for 2*3mm cables. Drop cables can be distributed from the lower layer of this closure for higher waterproof performance；
Capacity: max. 24F；

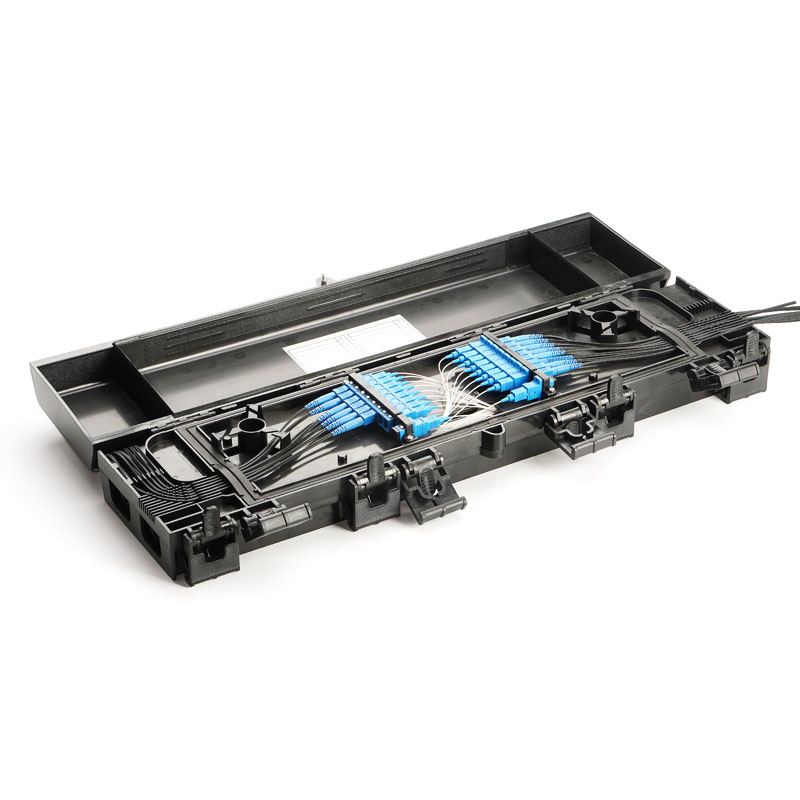

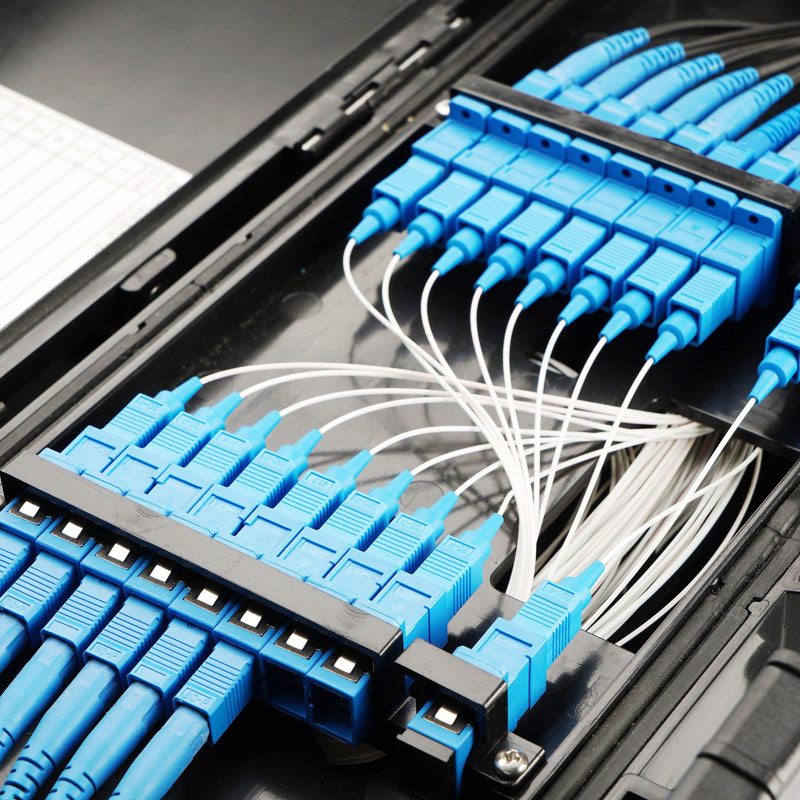

Adaptor/Splitter: applicable to 18 pcs SC adaptors and 2 pcs 1:8/ 1:16 splitters；
Sealing: push-pull mechanical tighteners plus buckles, IP55；
Installation: aerial；
Air permeable screw-free design, removable splitters; light and flexible, convenient for operation；

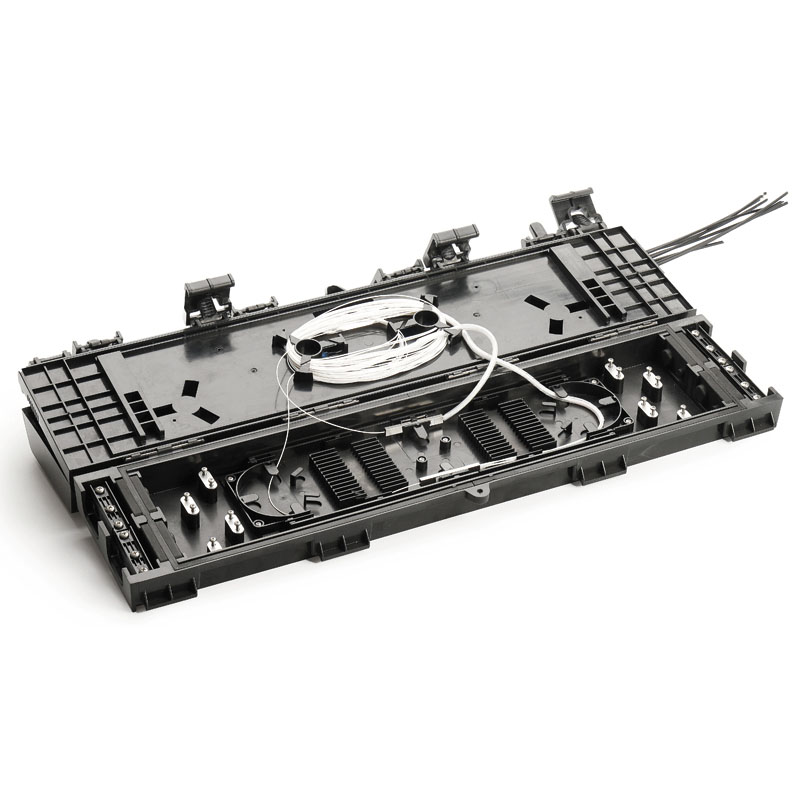

2-layer box body, the lower layer for fusion splicing, and the upper one for splitting and distribution. Well-structured inner design facilitates the field operation.
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Size (mm) | Weight | Inner carton size (mm) | Outer carton size (mm) |
| AO-09-9408 | 600×155×95 | 3.0～3.5kg | 630×170×105(1 pcs) | 650×360×350(6 pcs) |
