AO-09-5807

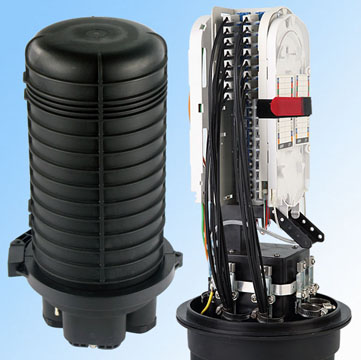

AO-09-5807 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design.

It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

FEATURES
  • Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 68.

  • Installation Method: wall-mounted, Pole-mounting,manhole

  • The box is used in FTTH project and receives national patents.

  • It applies to the seal demand of Φ8~22 cable or cable.

  • 1:32 splitter is applicable and it also can be installed with 34 SC adaptors.




APPLICATION
  • Telecommunication Networks

  • CATV Networks

  • Local Area Networks

  • Underground,Aerial,Buried

  • Vault and Buliding environments



SPECIFICATION
TypeNameWeight (kg)Inner Carton (mm)Outer Carton (mm)
AO-09-580724F -120F Dome fiber splice closure5.8~6.2kg300×230×110570x500x540(4 PCS)
