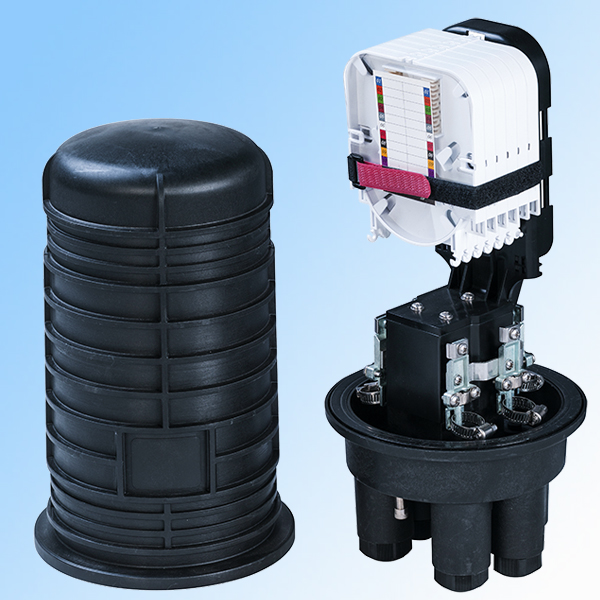

AO-09-5608 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design.
It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.
4 branch ports for Ф8~ 18mm cable. 1 pert for Ф10～18mm uncut cable.
Bundle cable capacity:12 -72F. Could be installed with 6 trays. l 2F/per tray in max.
Each fiber tray can be installed with I x 1:8 micro type splitter. Installation method: Aerial, wall mounting, direct burial etc.
Mechanical seal for the box and cable ports. Good sealing performance. Protection grade: IP68.
The product is small in size and occupies little space.
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Size | Weight | Inner carton size | Outer carton size |
| AO-09-5608 | 395×Ф225mm | 2.8-3.2kg | 410×235×205mm(1 pcs) | 740×440×450mm(6 pcs) |
