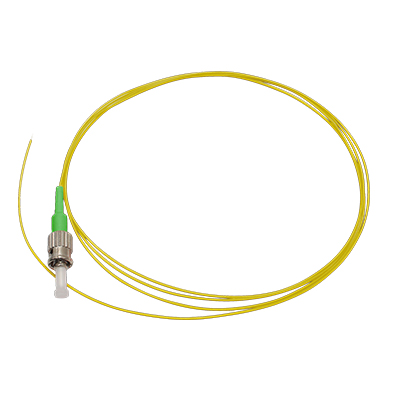

Fiber Optic Pigtail ST


FiberCore

Connector
Type

Fiber Type

Cable
diameter

Cable Color

Simplex:1
Duplex:2


SCP:SC/PC
SCA:SC/APC
FCP:FC/PC

FCA:FC/APC

LCP:LC/PC

LCA:LC/APC

STP:ST/PC



SM:9/125
M5:50/125
M6:62.5/125

OM:OM3/4 50/125



09:0.9mm
16:1.6mm
20:2.0mm
30:3.0mm

YE:YELLOW
OR:ORANGE

AQ=AQUA

VO=VOILET


FEATURES

> Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
> Customer length
> Various connector type available
> Environmental stable

APPLICATION

> Telecommunication network
> CATV system
> Local Area Network
> Active/Passive device
> FTTH and FTTx

SPECIFICATION
Optical Performance
Single Mode
Multi Mode
Insertion Loss
≤0.20dB
≤0.30dB
Return Loss
≥45dB(PC)
≥35dB
≥50dB(UPC)
≥60dB(APC)
Repeatability
≤0.10dB
Durability
≤0.2dB typical change,1000 matings
Operating Temperature
- 20 ~ +75℃
Storage Temperature
- 40 ~ +85℃
Endface Geometry
Parameter
2.5μm ferrule

1.25μm ferrule
UPC
APC
UPC
APC
Radius of Curvature
10~25mm
5~12mm
7~25mm
5~12mm
Apex Offset
0~50μm
0~50μm
0~50μm
0~50μm
Fiber Height
-100~50nm
-100~100nm
-100~50nm
-100~100nm
Angle
--
7.7-8.3degree
--
7.7-8.3degree
3D - Geometry
