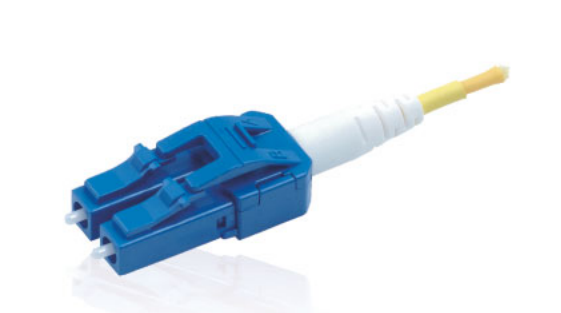

Connector in unibody design for higher mechanical strenth
Crimping neck moled in one piece with housing,easy to assembly
Compact contour design,suitable for HD distribution application

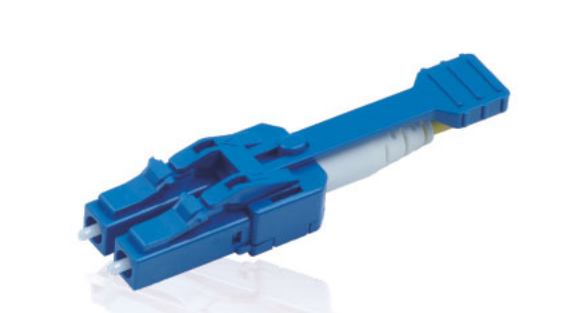

Pull to decouple releasing handle structure,easy to release the connector
Built with high performance material
> Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
> Superior Quality Standard PC/UPC/APC Polishing
> Customer Defined Specifications
> RoHS Compliance
> Environmental Stable
> Low Insertion Loss & back Reflection
> CATV Networks
> Telecommunication Networks
> Local Area Networks
> FTTH and FTTx
> Active Device Termination
> Testing Instruments
Optical Performance | Single Mode | Multi Mode | ||
Insertion Loss | ≤0.20dB | ≤0.30dB | ||
Return Loss | ≥45dB(PC) | ≥35dB | ||
≥50dB(UPC) | ||||
≥60dB(APC) | ||||
Repeatability | ≤0.10dB | |||
Durability | ≤0.2dB typical change,1000 matings | |||
Operating Temperature | - 20 ~ +75℃ | |||
Storage Temperature | - 40 ~ +85℃ | |||
Endface Geometry | ||||
Parameter | 2.5μm ferrule | 1.25μm ferrule | ||
UPC | APC | UPC | APC | |
Radius of Curvature | 10～25mm | 5～12mm | 7～25mm | 5～12mm |
Apex Offset | 0～50μm | 0～50μm | 0～50μm | 0～50μm |
Fiber Height | -100～50nm | -100～100nm | -100～50nm | -100～100nm |
Angle | -- | 7.7-8.3degree | -- | 7.7-8.3degree |
3D - Geometry |     | |||
