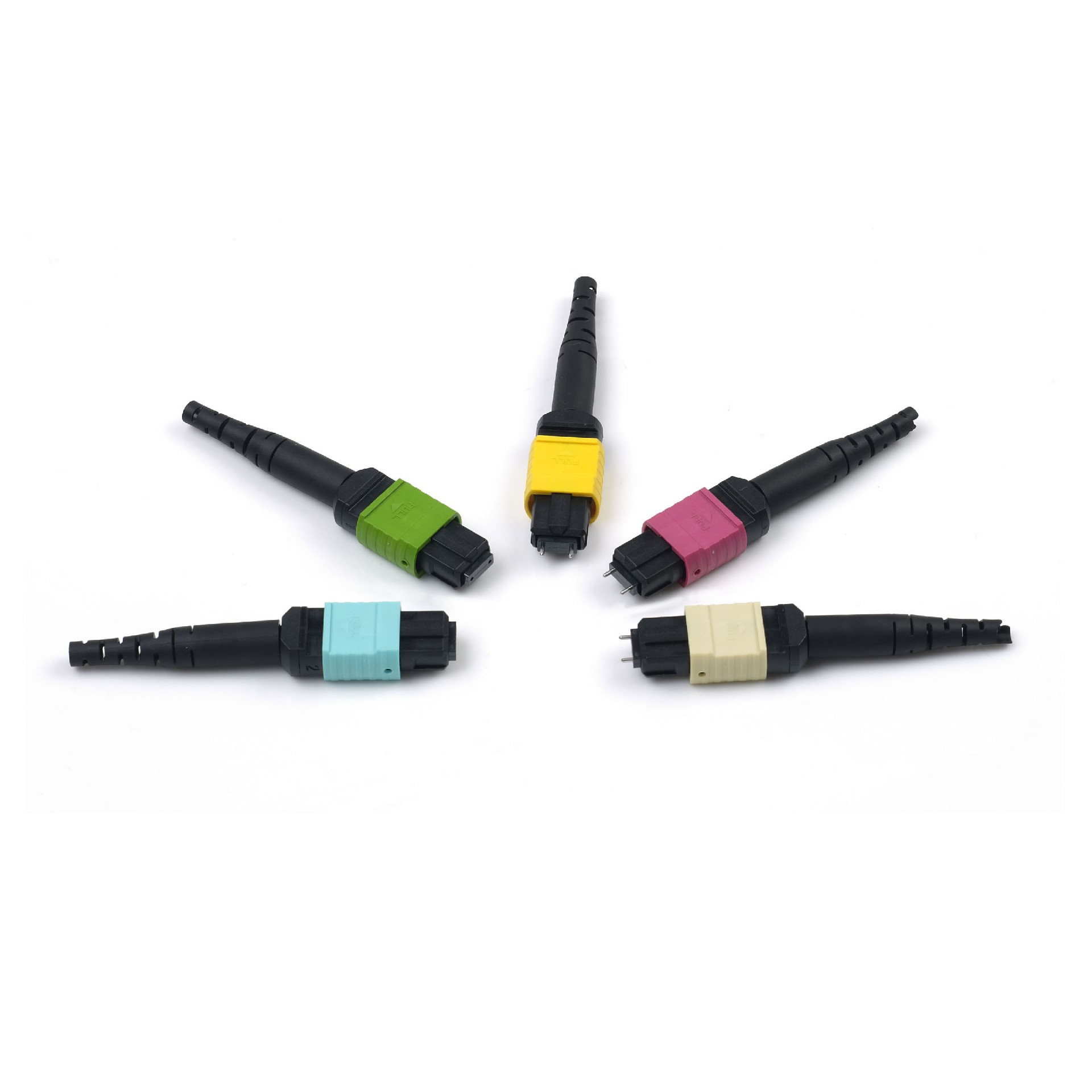

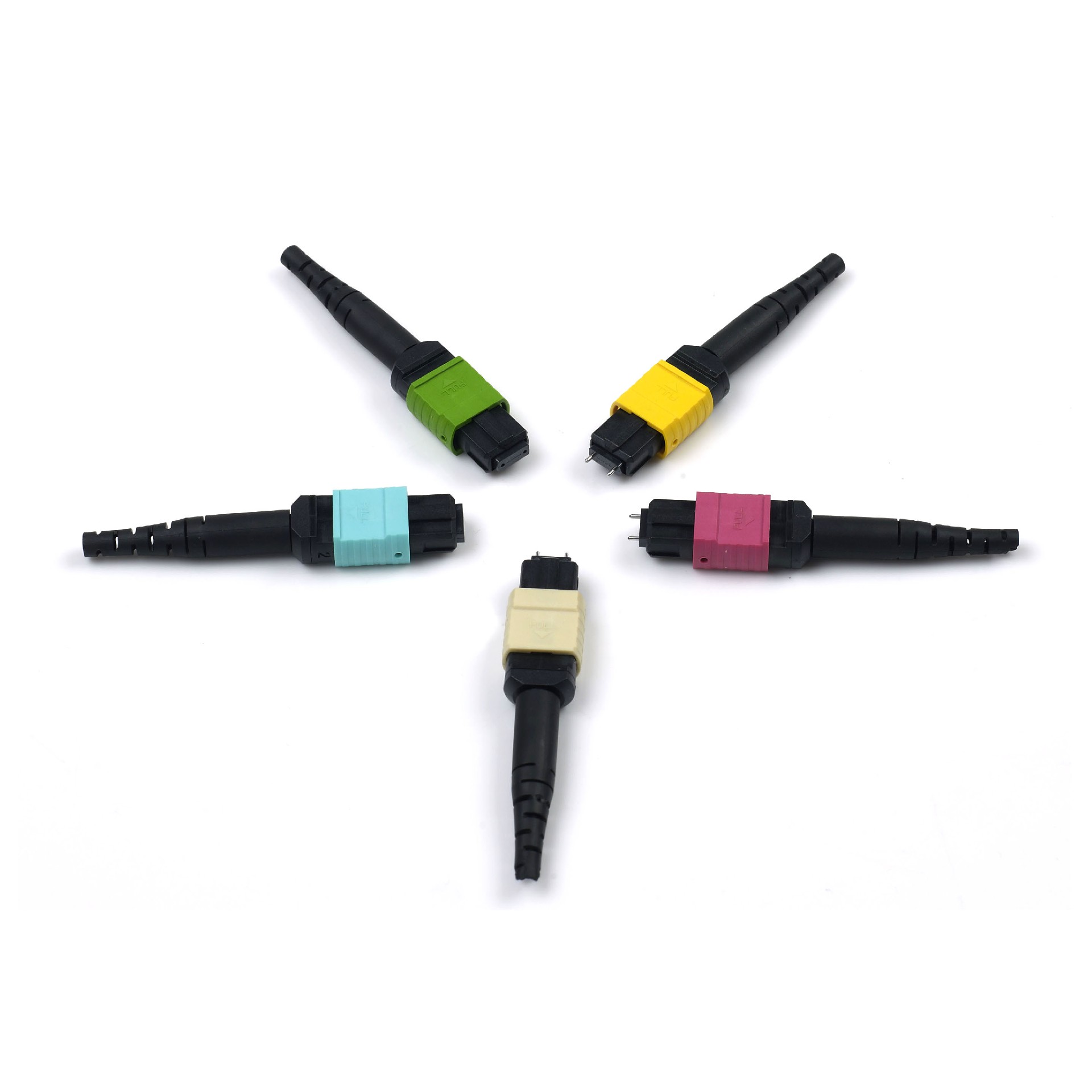

Allopto's MTP/MPO product family offers customer the flexibility needed for interconnecting opticalnetwork systems.
100% 3D test by Sumix Interferometer and IL/RL test by JGR machine to guaranty the product performance.
· 100% tested before delivery
· MTP And MPO available
· Trunk Cable Counts usually 8/12/16/24/32 fibers
· 3.0/3.6/4.5mm Round Cable or Customized
· SM/OM1/OM2/OM3/OM4/OM5 or Customized
· LSZH, OFNR, OFNP available
· Data center cabling
· Serves to serves cabling
· Gigabit ethernet
· CATV,Video and Multimedia
· Telecommunication network
· Industrial & Milltary
| MPO/MTP | SM Standard | SM Elite | MM Standard | MM Elite | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.60dB | 0.35dB | |
| Return Loss | APC≧60dB | ≧25dB | |||
| PC≧50dB | |||||

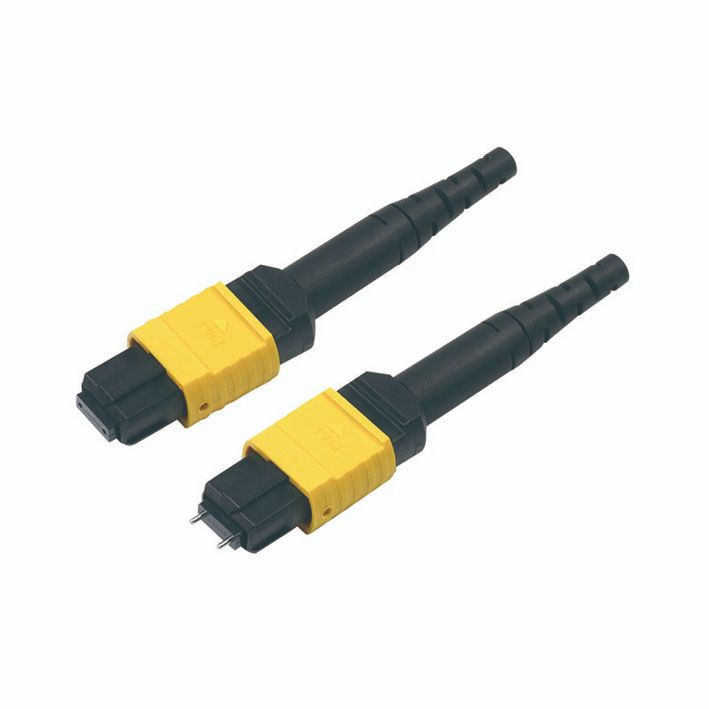

| Male/Female | Male: with Pins | Female: without Pins | |||
| Changeability | ≦0.30dB | ||||
| Tensile Strength | ≦0.30dB（Max. 66N） | ||||
| Vibration | ≦0.30dB（10~55Hz） | ||||
| Tempreture | -20℃ ~ +75℃ | ||||
