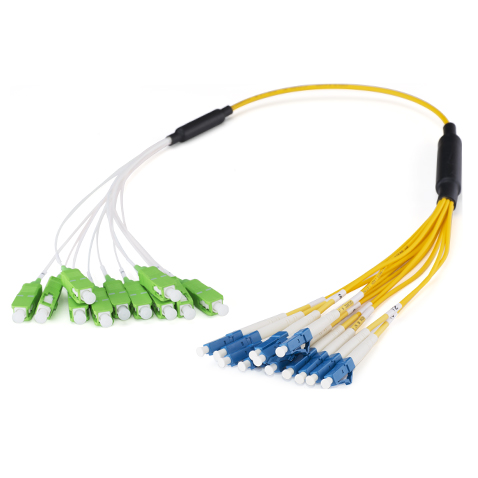

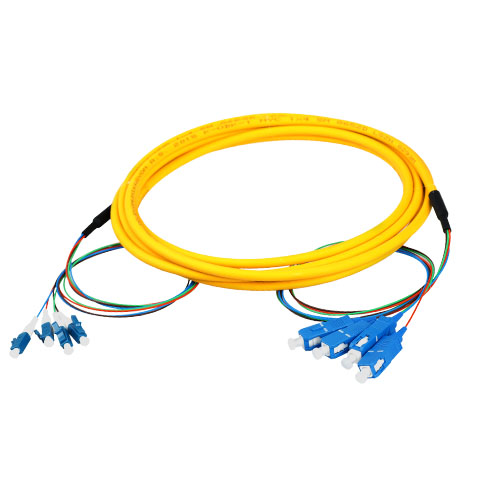

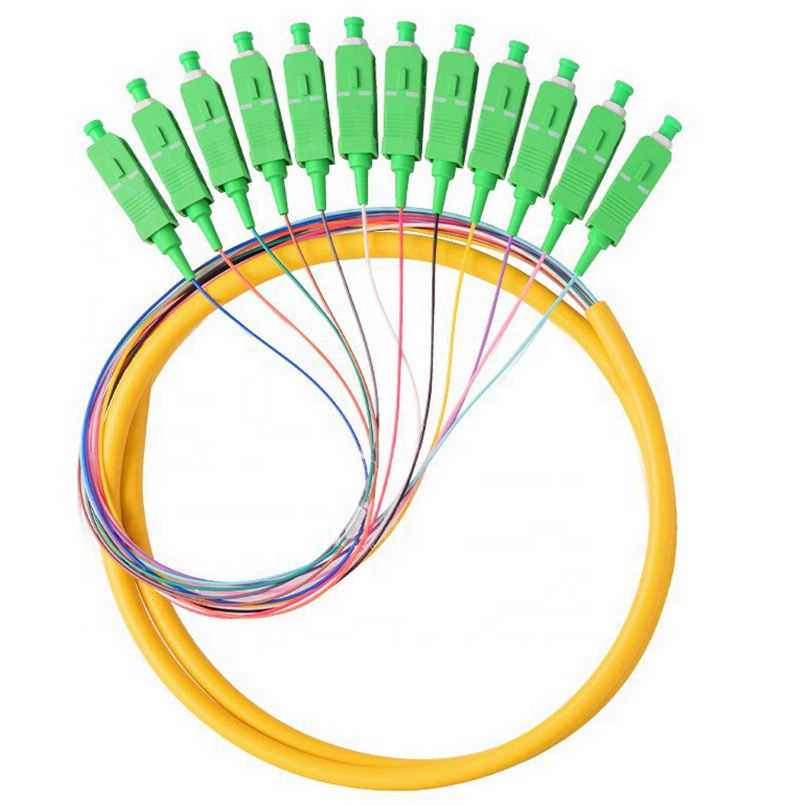

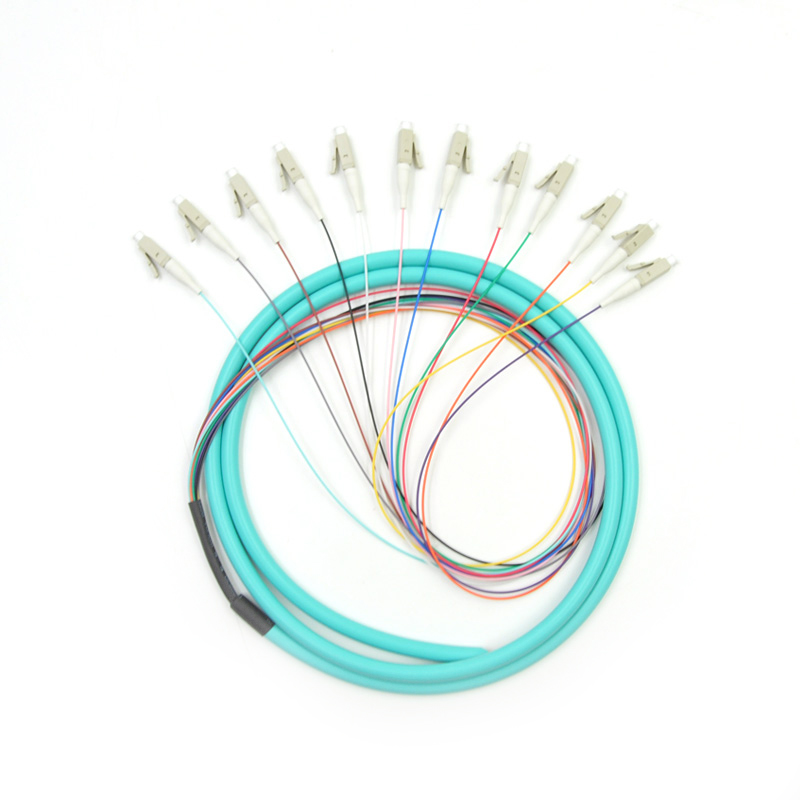

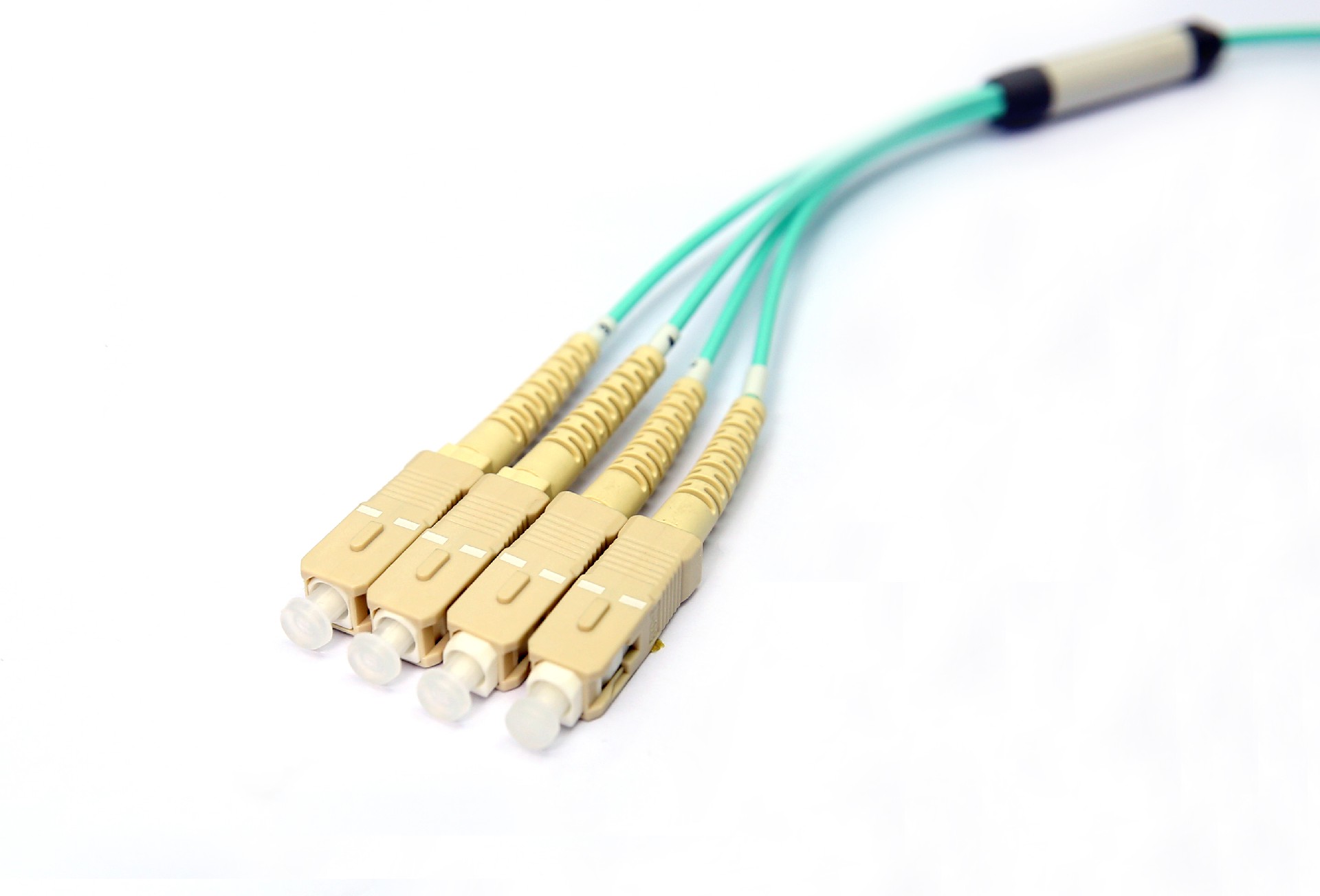

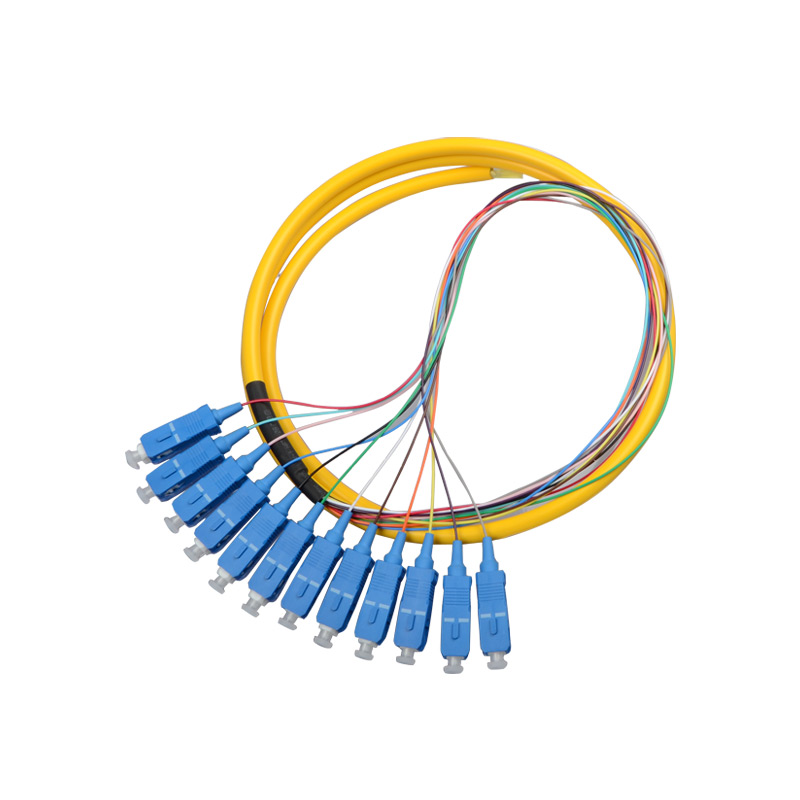

Allopto's multi fanout assemblies has the advantage of stable transmission,high reliability and customization.
It is widely used in optical network scenarios such as LAN,ODF and data center etc.
> Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
> Customer length
> Various connector type available
> Environmental stable
> Telecommunication network
> CATV system
> Local Area Network
> Active/Passive device
> FTTH and FTTx
Optical Performance | Single Mode | Multi Mode | ||
Insertion Loss | ≤0.20dB | ≤0.30dB | ||
Return Loss | ≥45dB(PC) | ≥35dB | ||
≥50dB(UPC) | ||||
≥60dB(APC) | ||||
Repeatability | ≤0.10dB | |||
Durability | ≤0.2dB typical change,1000 matings | |||
Operating Temperature | - 20 ~ +75℃ | |||
Storage Temperature | - 40 ~ +85℃ | |||
Endface Geometry | ||||
Parameter | 2.5μm ferrule | 1.25μm ferrule | ||
UPC | APC | UPC | APC | |
Radius of Curvature | 10～25mm | 5～12mm | 7～25mm | 5～12mm |
Apex Offset | 0～50μm | 0～50μm | 0～50μm | 0～50μm |
Fiber Height | -100～50nm | -100～100nm | -100～50nm | -100～100nm |
Angle | -- | 7.7-8.3degree | -- | 7.7-8.3degree |
3D - Geometry |     | |||
