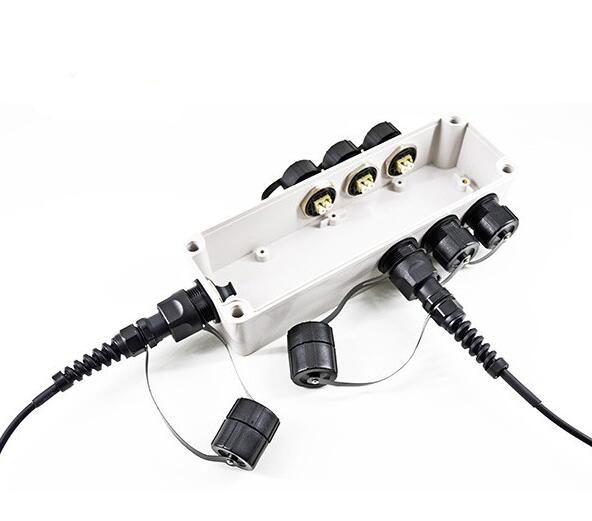

The ODVA Waterproof box is a fast connect closure that is sealed mechanically. It is single ended design and is generally used on the cable distribution section.
The closure provides a quick and reliable cable connection function in FTTH scenarios. It supports 6 pcs fast connect drop cables.
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
| Parameters | Value |
|---|---|
| Optical Cable inlet & outlet | 1x suitable for Φ5.0mm straight-through cable |

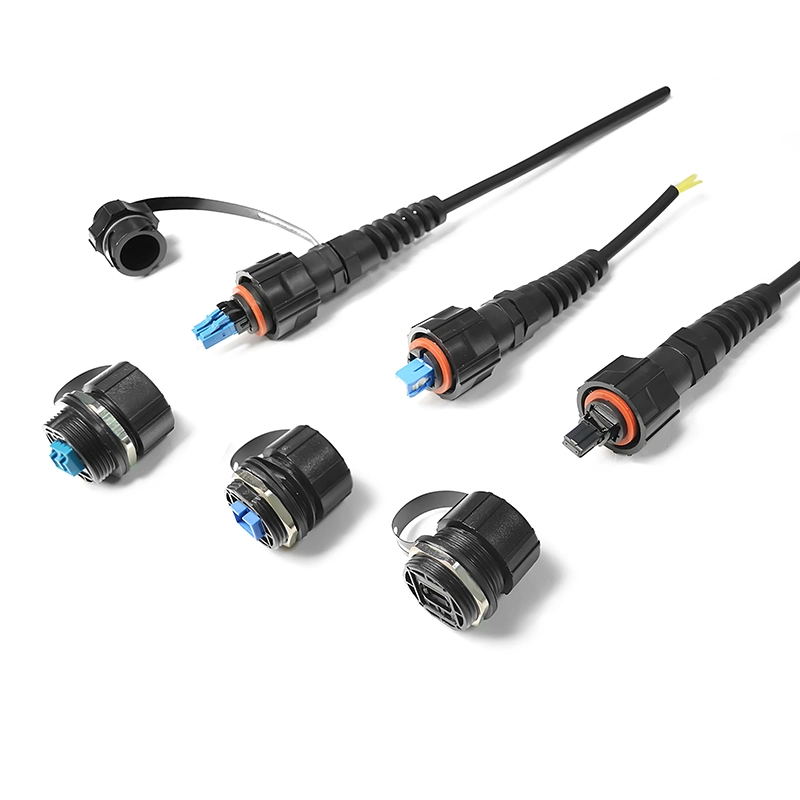

| Adapter Type | LC Duplex or SC Simple Hardened adapters |
| LC or SC Hardened Adapters QTY | 6pcs |
| Installation Mode | Pole/wall-mounting, aerial cable-mounting |
| Application Scenario | Overground installation |
| Dimensions (mm) | 250 x 70 x 80 |
| Net Weight (kg) | 0.4 |
| Shell Materials | ABS |
| Color | Light Grey |
| Protection Rating | IP65 |
| RoHS | Compliant |
| Sealing Mode | Mechanical |
Environment Parameters
| Storage Temperature | -40 ºC to +70 ºC |
|---|---|
| Operating Temperature | -40 ºC to +65 ºC |
| Relative Humidity | ≤ 93% |
Performance Parameters
| Adapter Insertion Loss | ≤ 0.25 dB |
|---|---|
| Reseating Durability | > 500 times |
