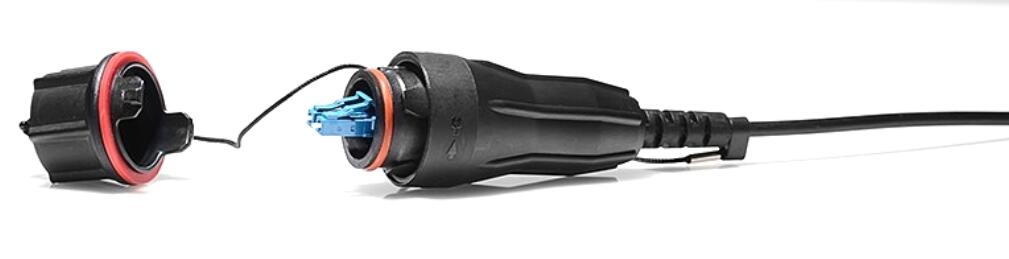

Allopto outdoor connector series are design for harsh environment applications, such as WiMax, LTE, FTTA connectivity, which requires rugged connector and cable assemblies suitable for outdoor use.
Open bulkhead for easy access to SFP
IP67 water and dust protection
Bulkhead cutout allows for removal of transceiver through the bulkhead
No need to open remote radio head (RRH) for transceiver replacement
Water proof, dust proof and corrosion resistant
Plug has tolerance free design, free floating on Z-axis
Widely used in FTTA & FTTH
Harsh outdoor environments application
| Item | CPRI Cable, Optical Cable ASSEMBLY |
| Ferrule end-face | PC UPC APC |
| Connector type | FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4 and SMA |
| Cable type | 7.0mm,5.0mm LSZH (OFNR Optional) |
| Mode | SM:9/125 |
| Cable diameter | 7.0mm |
| Insertion loss | ≤0.2 and ≤0.3dB |
| Return loss | ≥50 and ≥65dB |
| Exchangeability | ≤0.2dB |
| Vibration | ≤0.2dB |
| Operating temperature | -40 to 75℃ |
| Storage temperature | -45 to 85℃ |
| Tensile force | 70N/static state 40N/used state |
| G.652D | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
