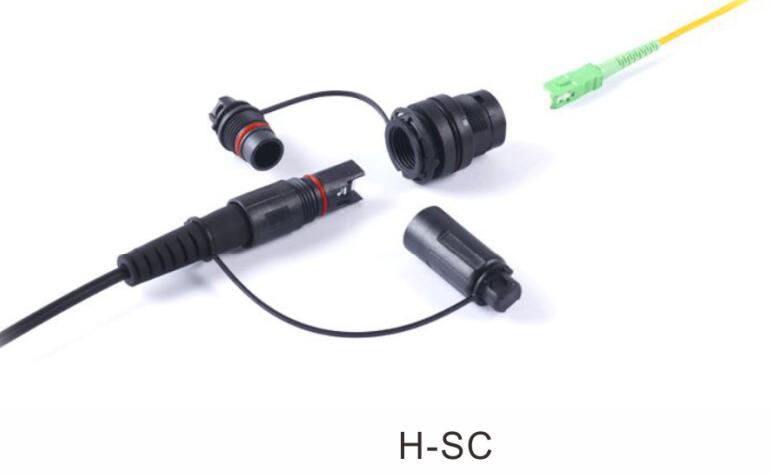

HARSH SC Outdoor Assembly

Allopto outdoor connector series are design for harsh environment applications,  such as WiMax, LTE, FTTA connectivity, which requires rugged connector and  cable assemblies suitable for outdoor use.

FEATURES

1. High reliability and high stability

2. Easy to assemble and easy to use

3. Comply with Telcordia GR-1221

4. Comply with Telcordia GR-326

5. IP67 waterproof and dustproof

6. Cable outer diameter:3.0-7.0mm


APPLICATION

▪ FTTA & FTTH
▪ Base station, BTS installation, BBU to RRU
▪ Indoor/outdoor building cabling
▪ Harsh environments application
▪ Long haul networking
▪ Direct burial and aerial lashing

SPECIFICATION
ItemCPRI Cable, Optical Cable ASSEMBLY
Ferrule end-face
PC UPC APC
Connector type
FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4 and SMA
Cable type
7.0mm,5.0mm LSZH (OFNR Optional)
Mode
SM:9/125
Cable diameter
7.0mm
Insertion loss
≤0.2 and ≤0.3dB
Return loss
≥50 and ≥65dB
Exchangeability
≤0.2dB
Vibration
≤0.2dB
Operating temperature
-40 to 75℃
Storage temperature
-45 to 85℃
Tensile force
70N/static state  40N/used state





G.652D
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850nm


≤3.0 dB/km
≤3.0 dB/km
@1300nm


≤1.0 dB/km
≤1.0 dB/km
@1310nm
≤0.36 dB/km
≤0.40 dB/km


@1550nm
≤0.22 dB/km
≤0.23dB/km



@850nm


≥500 MHz·km
≥200 MHz·km
@1300nm


≥1000 MHz·km
≥600 MHz·km
Numerical Aperture


0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelengthλcc
≤1260nm
≤1480nm
