Mode conditioning patch cables are used when a gigabit 1000Base-LX or 10GBase-LRM (1310 nm) router or switch has been installed into an existing multimode fiber cable systems.

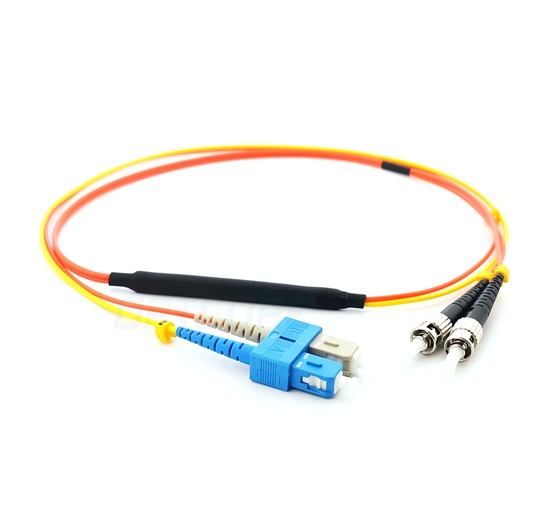

The mode-conditioning patch cords are designed to reduce differential mode delay (DMD) effects that can occur when a single mode signal is launched into a multimode fiber. The mode-conditioning patch cords consist of a single mode fiber which has been fusion spliced to a multimode fiber (orange jacket) in an offset manner. These patch cord cables utilize a UPC (Ultra Physical Contact) polish and PVC jacket.
> IEEE802.3z(Gigabit Ethernet)compliant
> Suitable for Gigabit 1000 BASE-LX on multimode cable
> Eliminate Differential Mode Delay effects
> Tested and approved to Gigabit Ethernet protocols-Coupled
Power Ratio(CPR)
> Function like standard patch cords
> Riser,Plenum,and LSZH cables avaliable
> Gigabit Ethernet hardware upgrade
Product | Mode Conditioning Patchcord |
Cable Plant | 62.5/125 or 50/125 MMF |
Operating wavelength | 1310nm |
Maximum insertion loss | 0.5dB (Typ:0.25dB) |
Coupled power ratio(CPR) | 28<CPR<40 dB for 62.5μm MMF 12<CPR<20 dB for 50μm MMF |
Back reflection | SM channel: 30dB,MM channel: 20dB |
Mating Durability | 500 mating cycles clean every 25 < 0.2dB Change |
Operating Temp. | -20 ~ 75℃ |
Storage Temp. | -40 ~ 85℃ |
