AO-09-9401

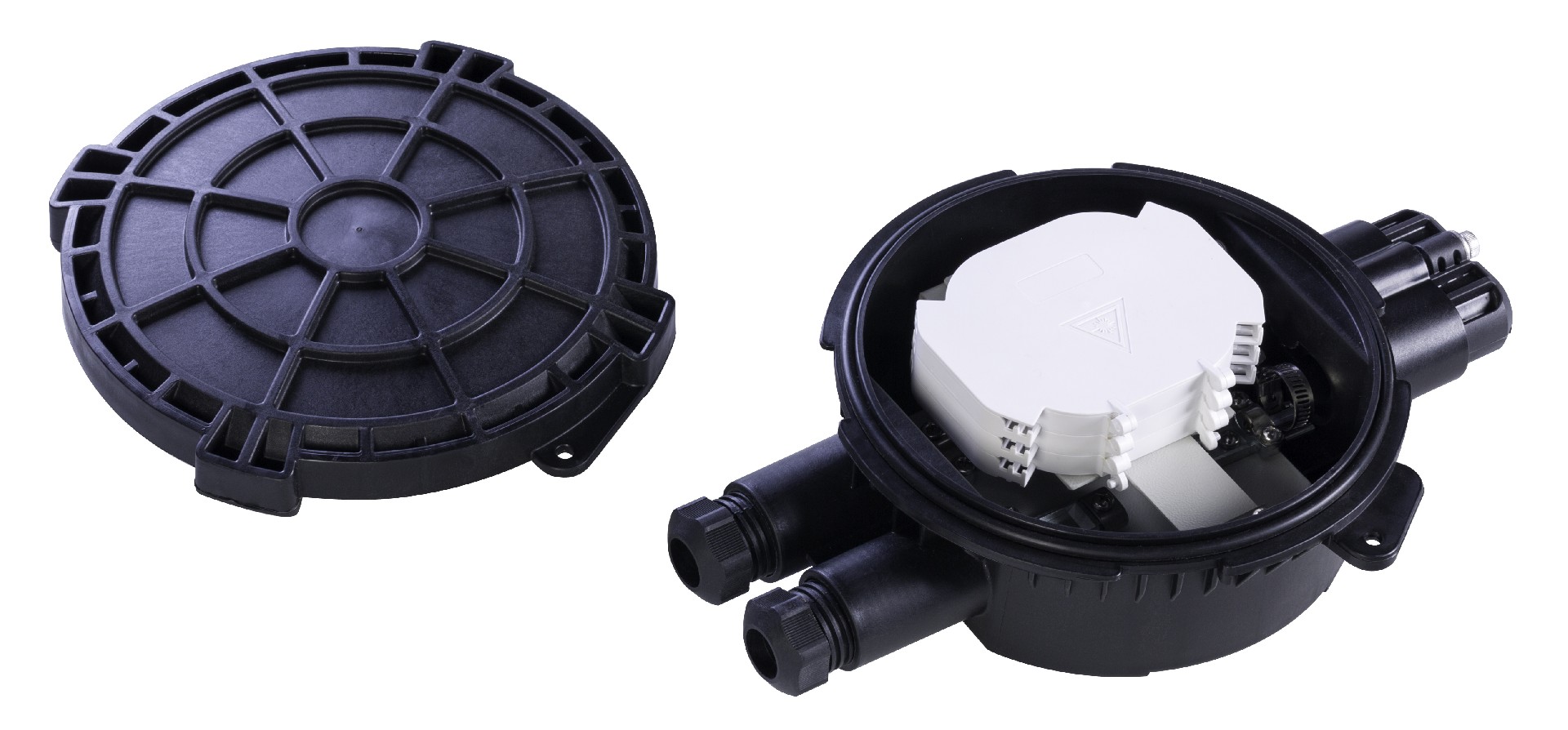

AO-09-9401 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design.

It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

FEATURES

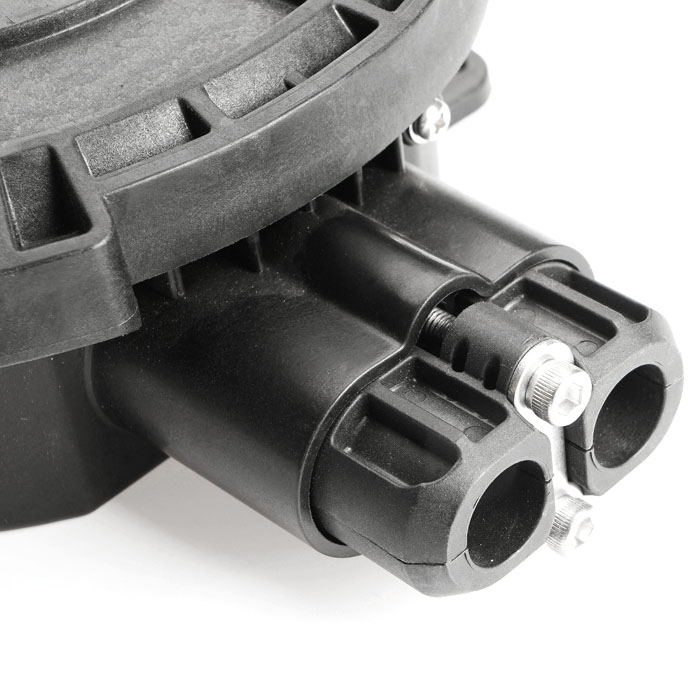

  • Ports: 1 uncut port, 2 branch ports, φ8-17.5mm;

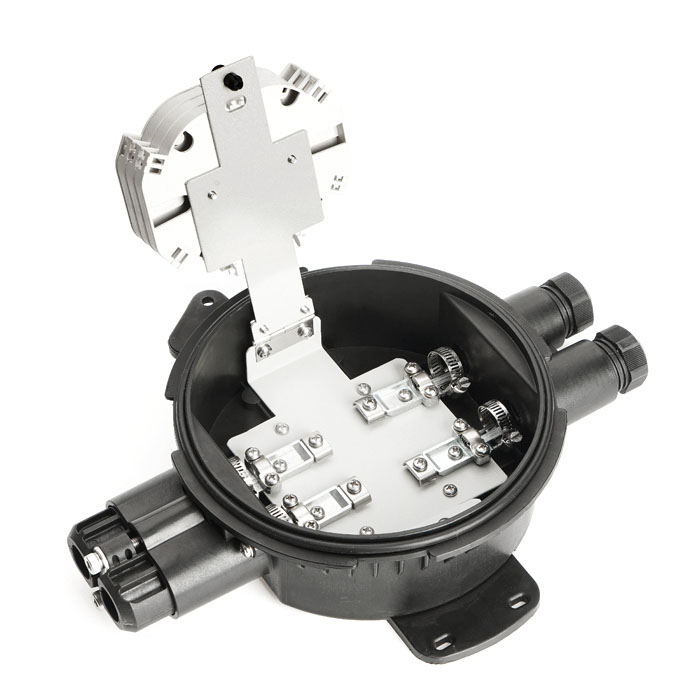

  • Capacity: 3 psc 12-core splice trays, max. 36F;

  • Sealing: spiral-style mechanical seal for the box body, IP68;

  • Installation: pole/wall/duct mounting, underground;

  • Original structure, compact shape;

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.


APPLICATION
  • Telecommunication Networks

  • CATV Networks

  • Local Area Networks

  • Underground,Aerial,Buried

  • Vault and Buliding environments



SPECIFICATION
TypeSize(mm)WeightInner carton size(mm)Outer carton size(mm)
AO-09-9401295×220×901.8-2.0kg320×235×110(1 pcs)495×345×620(10 pcs)
