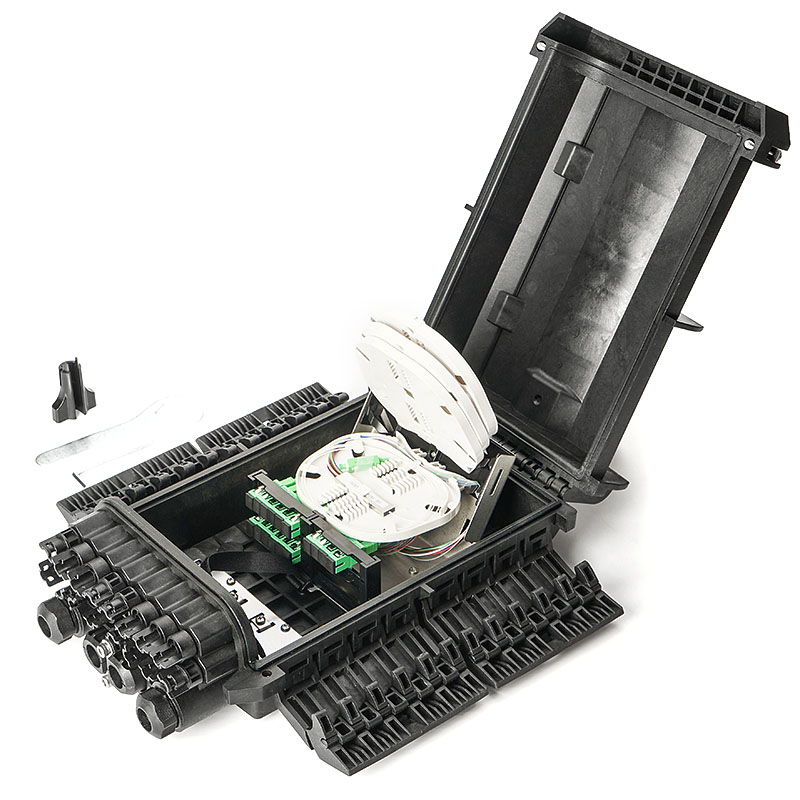

AO-09-8205 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design. It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

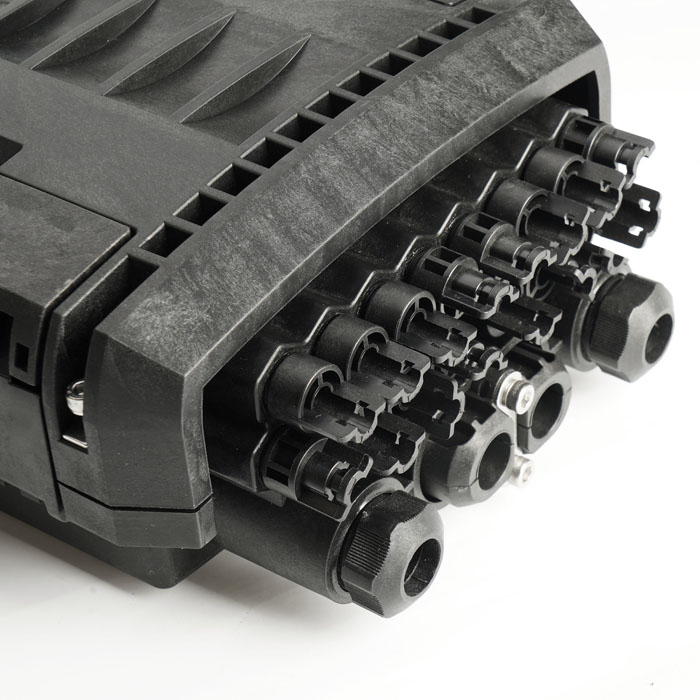

Ports: 19 ports. 1 uncut, 2 branch, φ8-17.5mm; 16 drop applicable to 2*3/ φ3-7mm cables;
Capacity: 4 psc 24-core splice trays, max. 96F;
Adaptor/Splitter: applicable to 16 pcs SC adaptors, 2 pcs 1:8 mini splitter;
Sealing: screw-free hinged style mechanical seal for the box body, re-openable, IP68;
Installation: pole mounting, wall mounting;

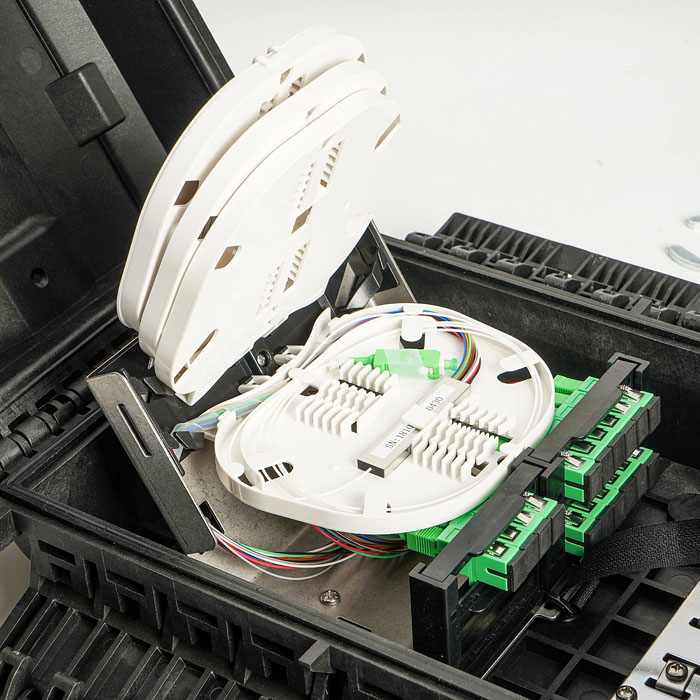

Splice trays are connected by hinges, which enables the fiber opertaion on one tray without affecting the others; and the fibers can be flexibly shifted from one tray to another for splicing.
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Size(mm) | Weight | Inner carton size(mm) | Outer carton size(mm) |
| AO-09-8205 | 380×245×130mm | 3.0～4.0kg | 395×255×165(1 pcs) | 540×410×375(4 pcs) |
