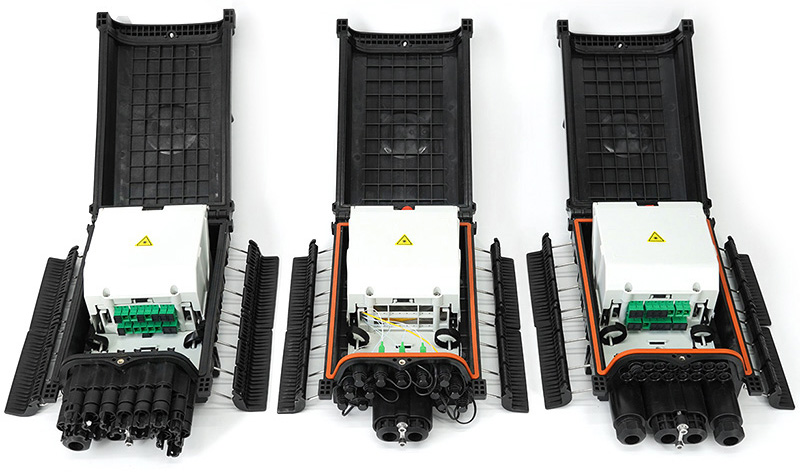

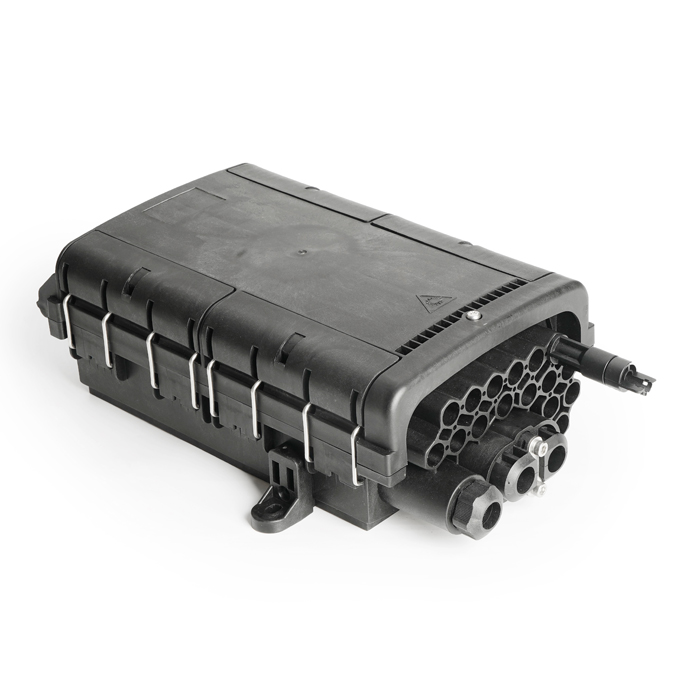

AO-09-8207 series hinged closures featuring Plug and Play facilitates the quick FTTH deployment.

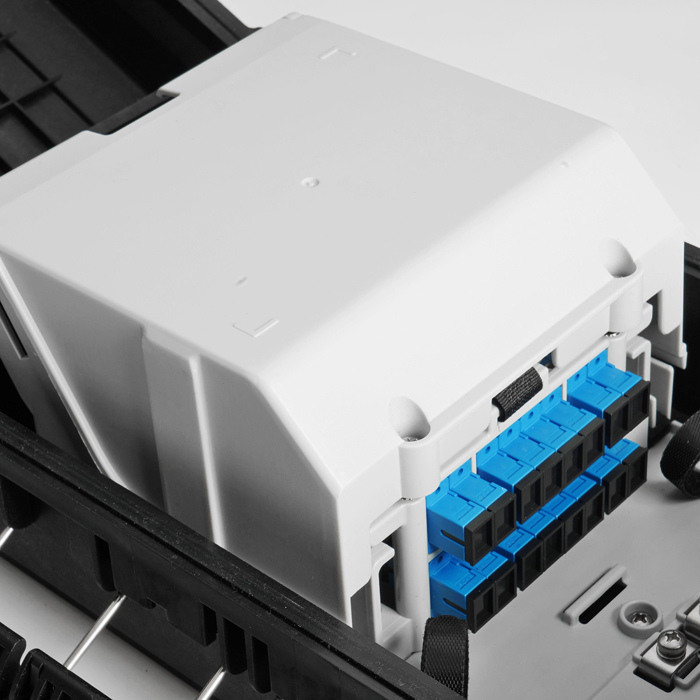

A splice tray protector is designed to separate the fusion splice and distribution districts. The sealing type is mechanical seal. 3 types of this series have been developed to meet different fiber management solutions.

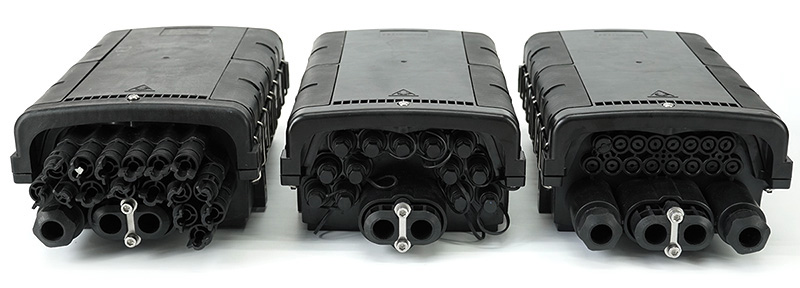

Ports:
AO-09-8207-A:1 uncut port (φ10-17.5 mm), 1 branch port (φ10-17.5 mm), 16 drop ports (fast connector, φ2*3 mm/φ3-8 mm)
AO-09-8207-B: 1 uncut port (φ10-17.5 mm), 13 pcs Chaoqian hardened connectors
AO-09-8207-C: 1 uncut port (φ10-17.5 mm), 2 branch ports (φ10-17.5 mm), 16 drop ports (sealing plug design, φ2*3 mm)
Capacity: 24F tray capacity, max 4 splice trays
Fusion Splice Capacity: maximum 96F;
Splitter/Adapter: 2 pcs 1:8 mini splitter, 16 pcs adapters (8207-A/C);
Sealing: hinged structure, buckles and silicone rubber for seal, IP68 (8207-A/B), IP55 (8207-C);
Installation: wall-mounting, pole-mounting;
Performance: all types meet the IEC standards;
Plug and play; A splice tray protector is designed to separate the fusion splice and distribution districts;
Removable wall-mounting kit for saving mounting as well as packing space.
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Size(mm) | Weight | Inner Carton (mm) | Outer Carton (mm) |
| AO-09-8207-A/B/C | 370×210×124 | 3-3.5kg | 395×255×165(1 PCS) | 540×410×375 (4 PCS) |
