AO-09-1008

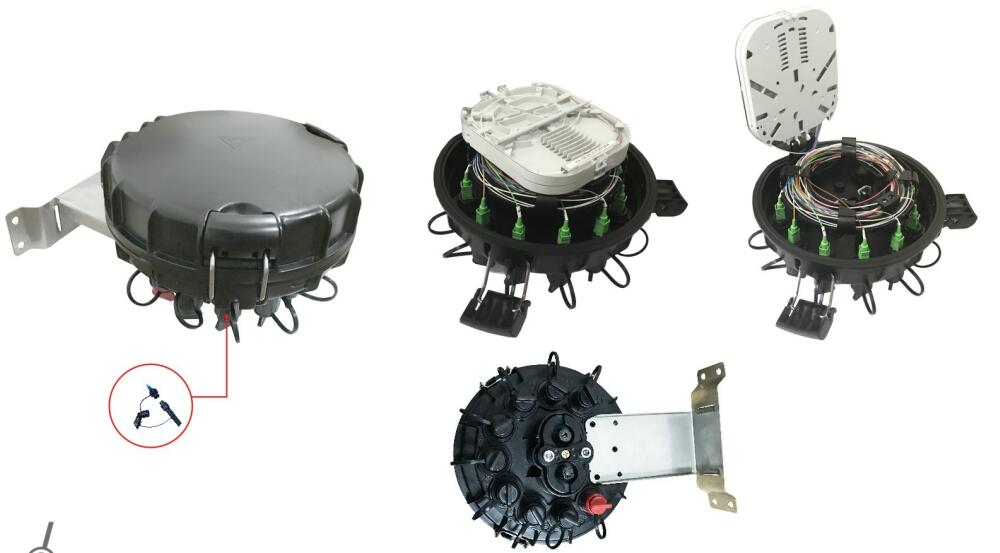

AO-09-1008 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design. It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

FEATURES

 Closure provides perfect solution for the  protection of the   junction point of optical fiber cable from  environment

 Silicone gasket is used to seal closure and  provide a long term reliability

 Closures have two or three cable entrance ports  on each end

 Closures can be installed at temperatures  between (-40℃~80℃)

 Closures are compact and lightweight

APPLICATION
  • Telecommunication Networks

  • CATV Networks

  • Local Area Networks

  • Underground,Aerial,Buried

  • Vault and Buliding environments




SPECIFICATION
TypeSize (mm)IP RateInstallationMax.Cable Dia.
AO-09-1008180×190×129IP65 Wall mounted or pole mountedMax.input:14mm;Max.output:SC
