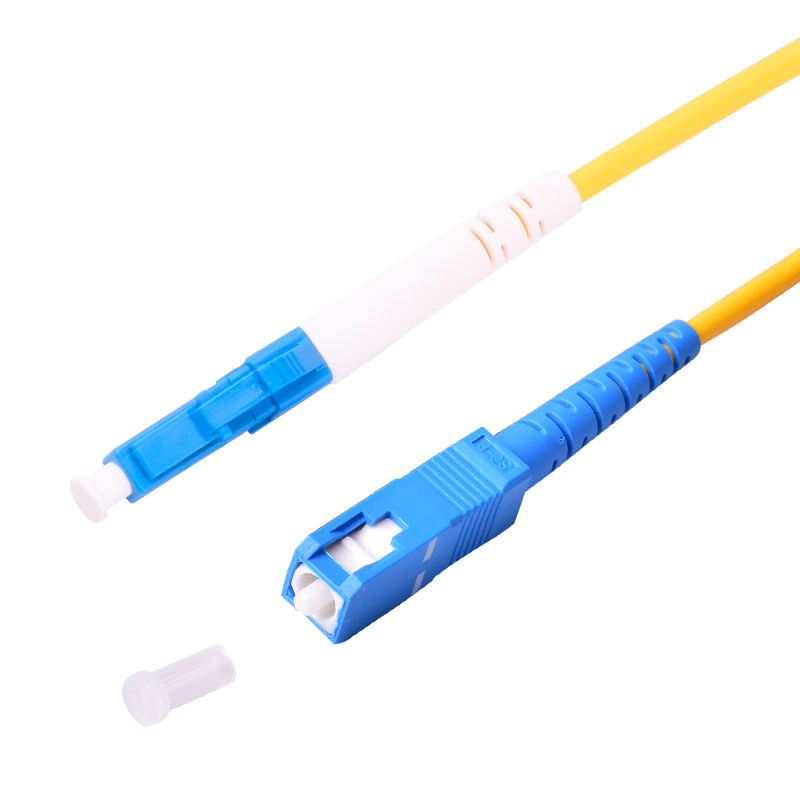

Allopto's master test leads are terminated with the highest quality physical contact (singlemode) zirconia ferrule connectors.
The connectors are manufactured with precision mounting and polishing techniques which ensure excellent mating characteristics and optimised optical performance.
> Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
> Customer length
> Various connector type available
> Environmental stable
> End face geometry, concentricity and IL / RL test report provided
> Optical network testing
> Testing Labs
> Critical Telecom & Industrial network
| Parameters | Single mode | Multimode | Conformance |
| IL MAX/ Master (Acceptance) | < 0.10 dB | < 0.10 dB | IEC 61300-3-4 |
| MAX IL/Random 97% | < 0.20 dB | < 0.25 dB | IEC 61300-3-34 |
| Ave/Master* | < 0.08 dB | < 0.08 dB | IEC 61300-3-4 |
| Return Loss | 55/70dB | - | IEC 61300-3-6 |
| Apex Offset | 50um Max | 50um Max | |
| Radius of curvature (ST, SC,FC) | 10mm Min / 20mm Max | ||
| Radius of curvature (LC) | 7mm Min /20mm Max | ||
| Mechanical endurance | 1000 mating | IEC 61300-2-2 | |
