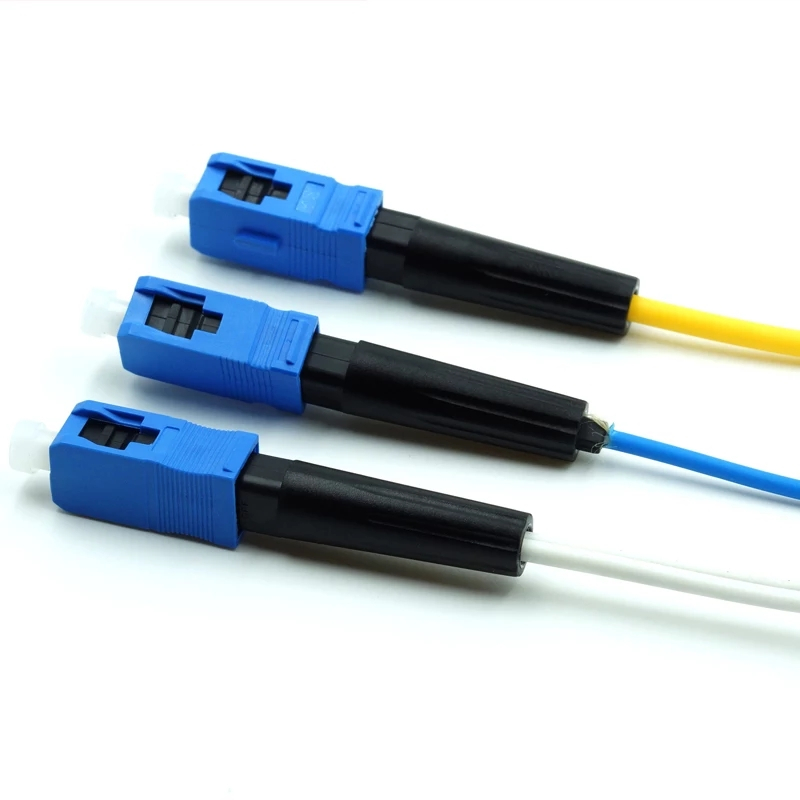

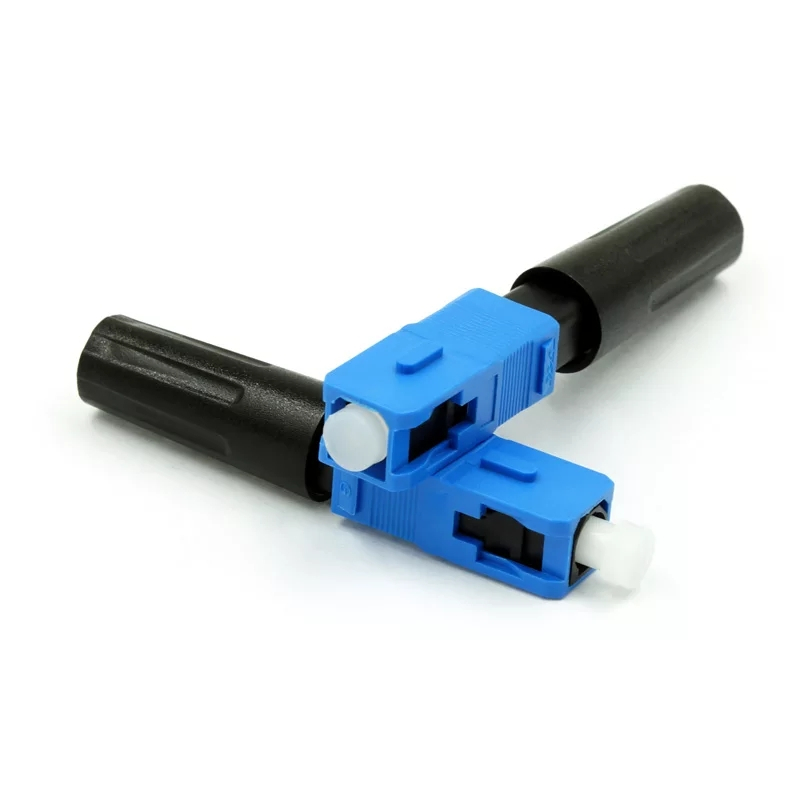

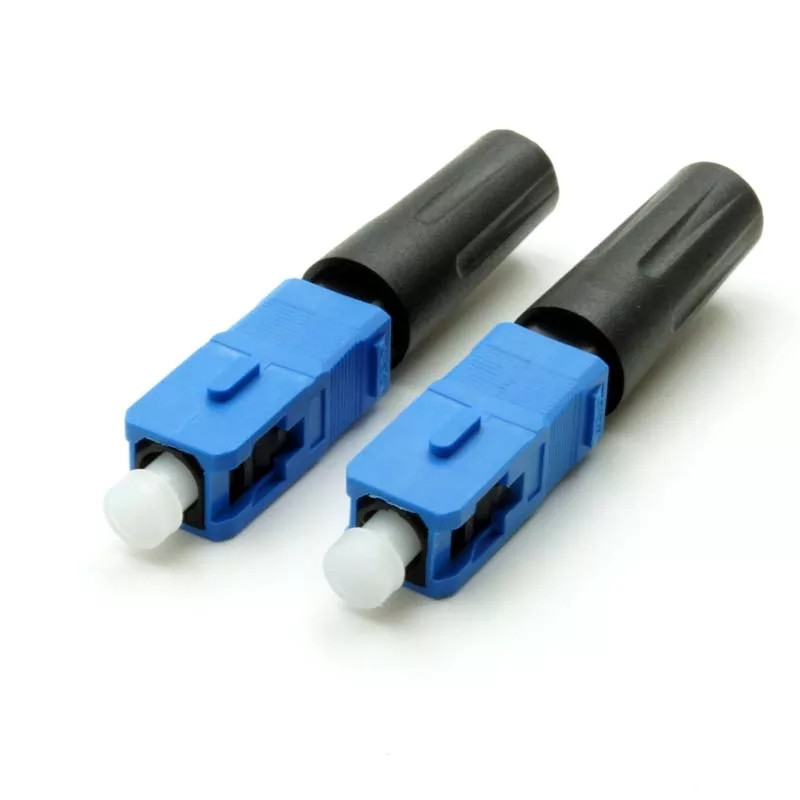

Fast Field Connector SC/PC

Allopto's Field Installable Connectors (FIC) are factory terminated and polished to make fibre terminations fast, easy and reliable.

The fiber optic connectors offer terminations in less than 2 minutes without any difficulty and requires no epoxy, polishing or crimping.

FEATURES

> Comply with Telcodia GR-326-CORE
> No epoxy, no polishing required

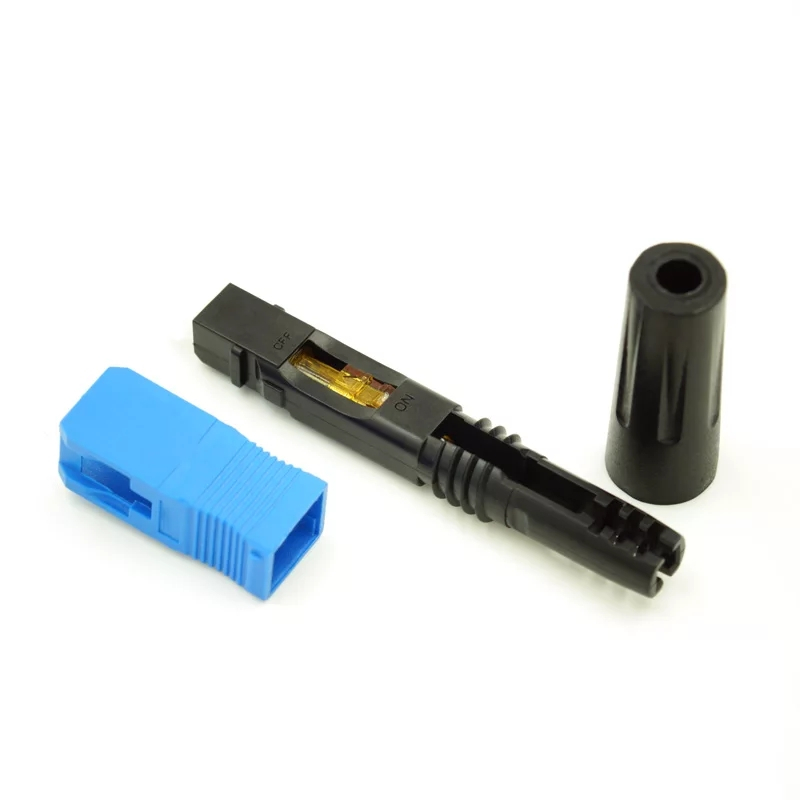

> Re-usable design
> Easy operation, quick connector
> High performance, high reliability, low loss

APPLICATION

> FTTx fast field termination
> Telecommunication Network
> Data Communication Network

SPECIFICATION



ITEM.
Technical Parameters
Available for
3.1 x 2.0 mm Drop cable
Optical fiber diameter
125μm ( 657A & 657B )
Tight buffer diameter
250 μ m
Fiber mode
Single mode
Operation time
About 100s ( no fiber cut )
Insert  loss
≤ 0.5dB ( 1310nm & 1550nm )
Return loss

≤ -45dB PC

≤ -55dB APC

Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>30 N
Using temperature
-40 ~ + 75 ℃
On-line tensile strength (20 N)
△ IL ≤ 0.2dB △ RL ≤ 5dB
Mechanical durability (500 times)
△ IL ≤ 0.2dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m ,
once per direction, totally 3 times)

△ IL ≤ 0.2dB △ RL ≤ 5dB
